Ricoh Aficio GX7000 - Page 34

ZDJX006J
TS4K031E

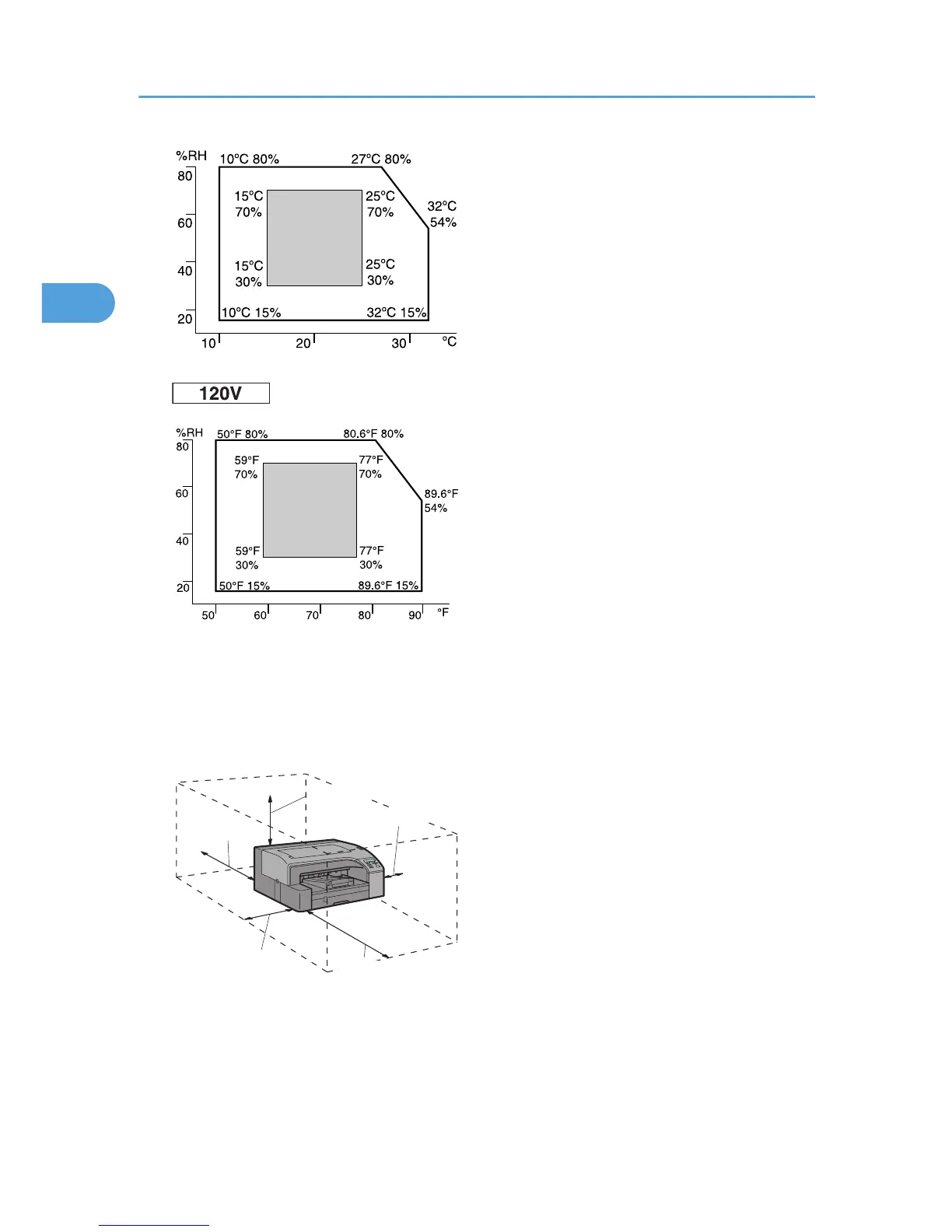

• White area: Permissible Range
• Gray area: Recommended Range
• The diagram below shows the ideal clearance for loading paper, replacing print cartridges, and
removing jammed paper
19 cm
(7.5 inches)
b
3 cm (1.2 inches)
32 cm (12.6 inches)
10 cm (4 inches)
16 cm (6.3 inches)
a
BAJ007S
a. If you attach the multi bypass tray (option), provide additional clearance of 26 cm (10.3 inches).
b. If you attach the multi bypass tray (option), provide additional clearance of 29 cm (11.5 inches).
2. Preparing for Printing
32
2
