Tray Heaters (Optional Unit)
SM 2-79 D037/D038/D040/D041
Installaion
2.21 TRAY HEATERS (OPTIONAL UNIT)
2.21.1 INSTALLATION PROCEDURE
This heater is supplied as a spare part.
Tray Heater for D425

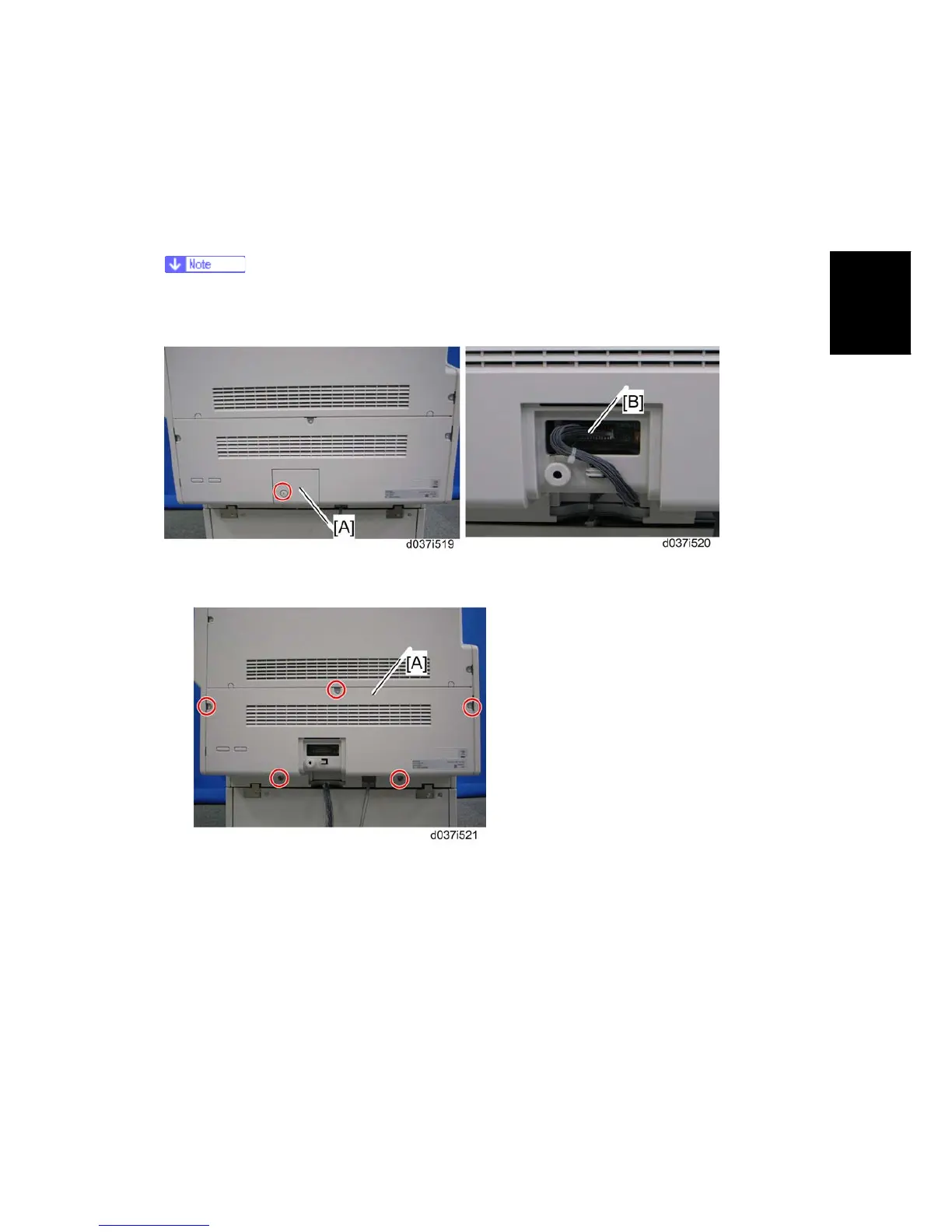

1. Remove the rear connector cover [A] (rivet screw x 1) of the mainframe.
2. Disconnect the harness [B].
3. Remove the rear lower cover [A] of the mainframe ( x 5).
4. Pull out all the tray cassettes of the paper feed unit.
