Ricoh Aficio MP C2550 Service Manual

Image Transfer
SM 4-61 D037/D038/D040/D041
Replacement
& Adjustment

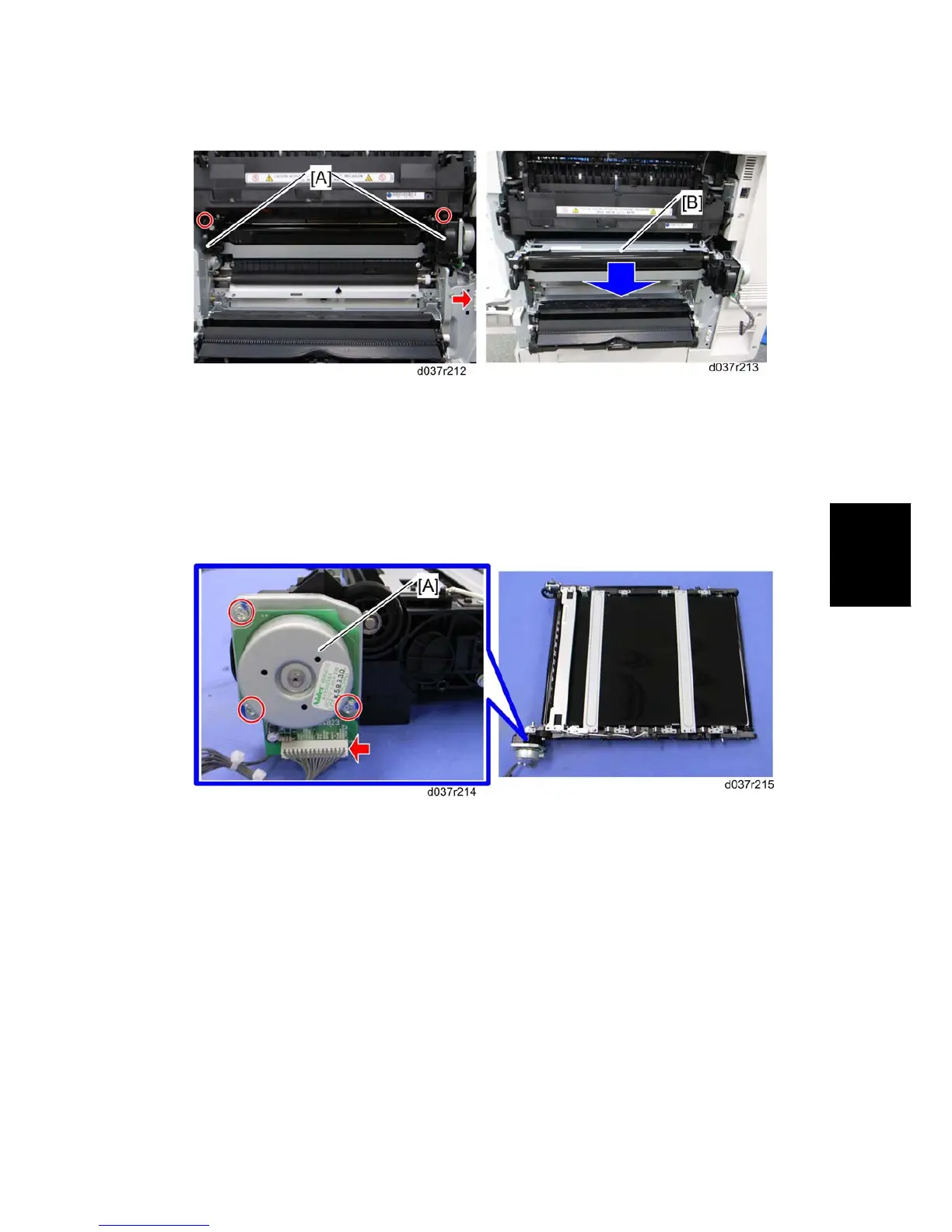

9. Grasp the handles [A], and then pull out the ITB unit fully [B] ( x 2,  x 1).
10. Remove the ITB unit motor after pulling out the ITB unit from the machine. ( Next
procedure)
4.8.4 ITB UNIT MOTOR
1. ITB cleaning unit ( Section: ITB Cleaning Unit)
2. ITB unit ( Section: ITB Unit)
3. ITB unit motor [A] ( x 3,  x 1)
4.8.5 IMAGE TRANSFER BELT
1. ITB cleaning unit ( Section: ITB Cleaning Unit)
2. ITB unit ( Section: ITB Unit)
3. ITB unit motor ( Section: ITB Unit Motor)
