Ricoh Aficio MP C2550 Service Manual

Image Transfer
SM 4-65 D037/D038/D040/D041
Replacement
& Adjustment
14. Image transfer belt [B]
When reinstalling a new image transfer belt
 Reset the PM counter

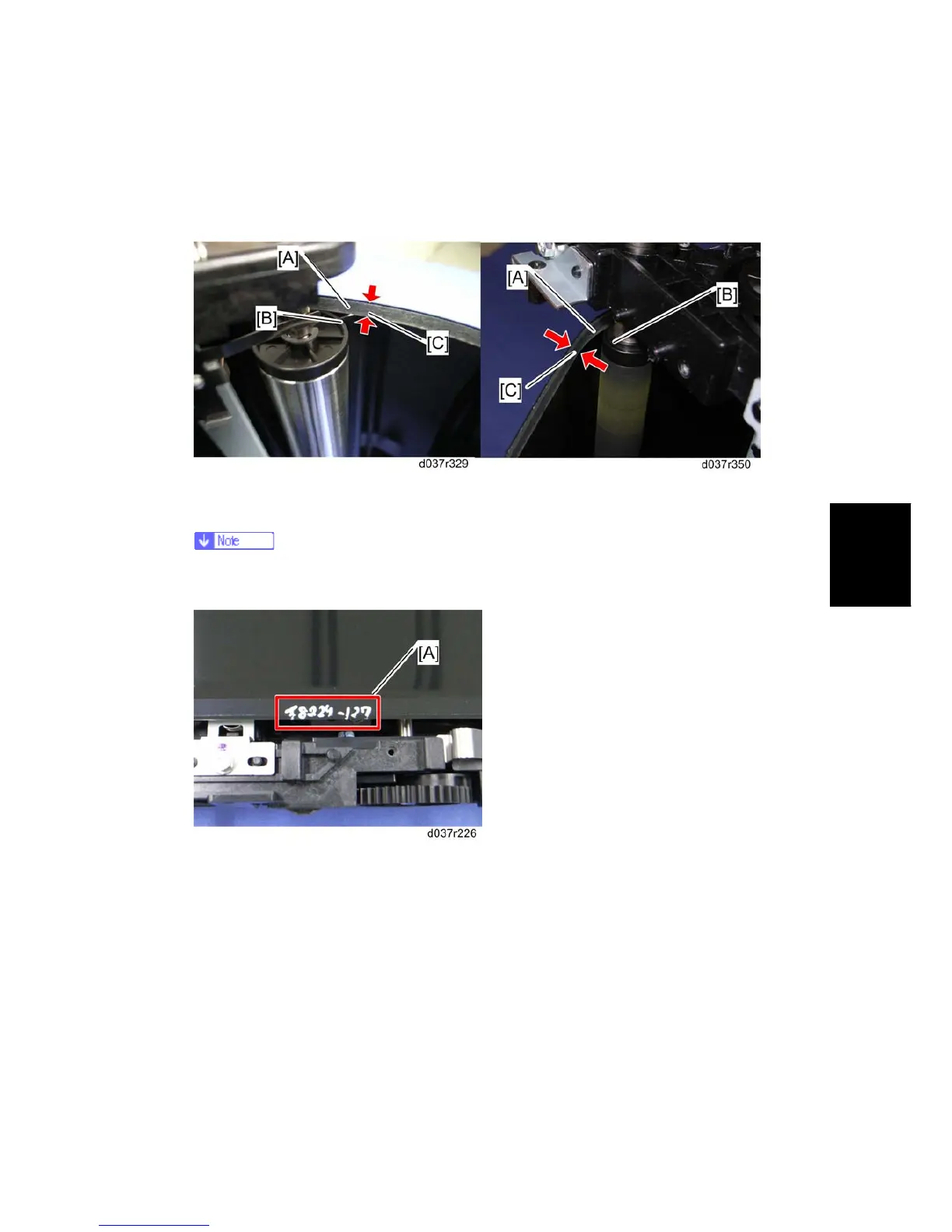

 There is a rim [A] at each edge of the transfer belt. The ends of all the rollers ([B] for
example) in the transfer belt unit must be between the two rims.
 There are two rims (width [C]: about 5 mm) at the front and rear edges inside
the image transfer belt.
 This belt must be installed the correct way around. When you reinstall the image
transfer belt unit, install it with the number [A] on the belt at the rear side of the unit.
4.8.6 ITB CONTACT MOTOR
1. Pull out all the toner bottles.
2. Inverter tray ( Section: Inverter Tray)
3. Inner tray ( Section: Inner Tray)
