Ricoh Aficio MP C2550 Service Manual

Scanner Unit
D037/D038/D040/D041 4-32 SM

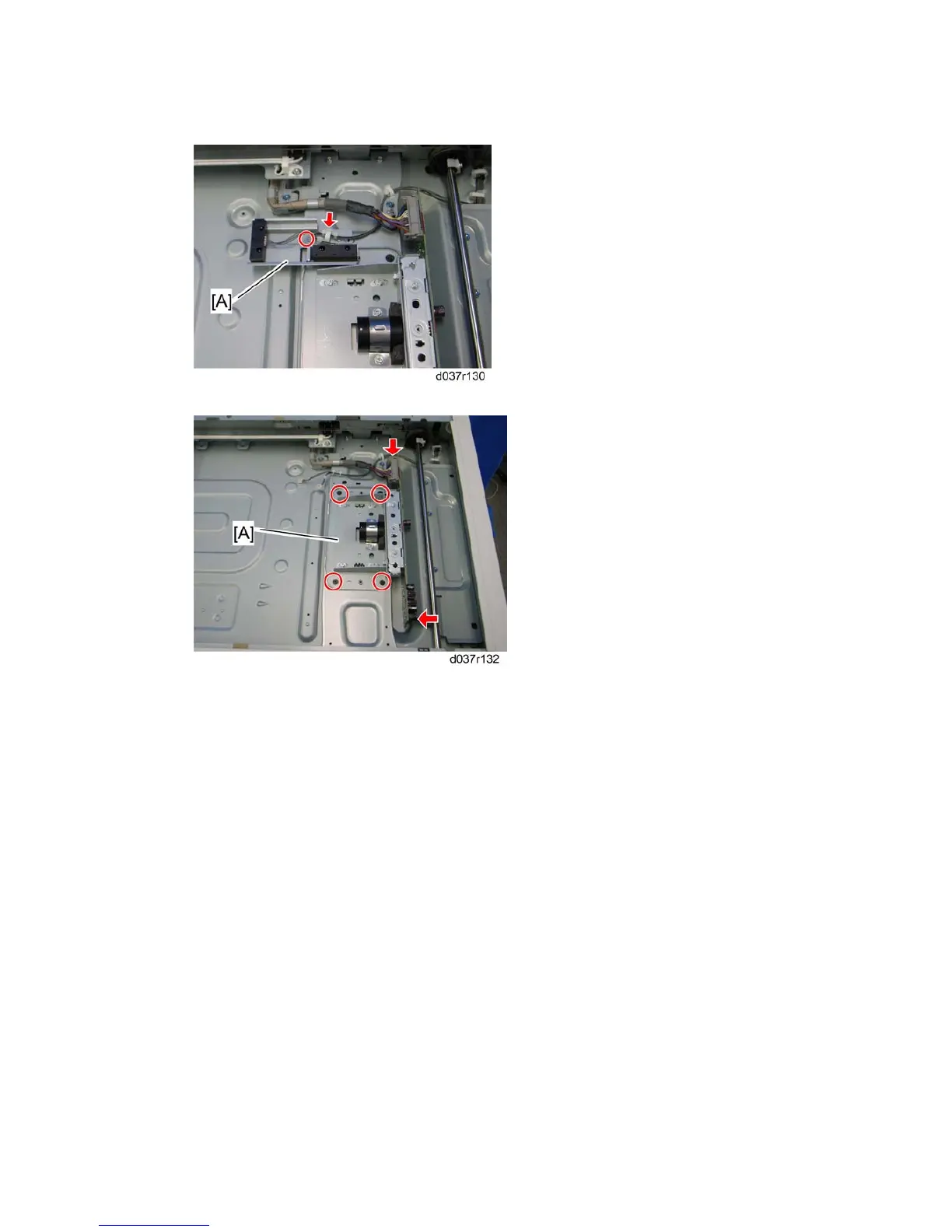

2. Original length sensor bracket [A] ( x 1, = x1,  x 1 each)
3. Sensor board unit [A] ( x 4, ground screw x 1,  x 2)
When reassembling
Adjust the following SP modes after you replace the sensor board unit:
 SP4–008 (Sub Scan Mag):  Section: "Image Adjustment: Scanning".
 SP4–010 (Sub Mag Reg.):  Section: "Image Adjustment: Scanning".
 SP4–011 (Main Scan Reg):  Section: "Image Adjustment: Scanning".
 SP4–688 (DF: Density Adjustment): Use this to adjust the density level if the ID of
outputs made in the DF and Platen mode is different.
4.5.6 EXPOSURE LAMP STABILIZER
1. Rear cover ( Section: Rear Cover)
