Ricoh Aficio MP C2550 Service Manual

Scanner Unit
SM 4-31 D037/D038/D040/D041
Replacement
& Adjustment

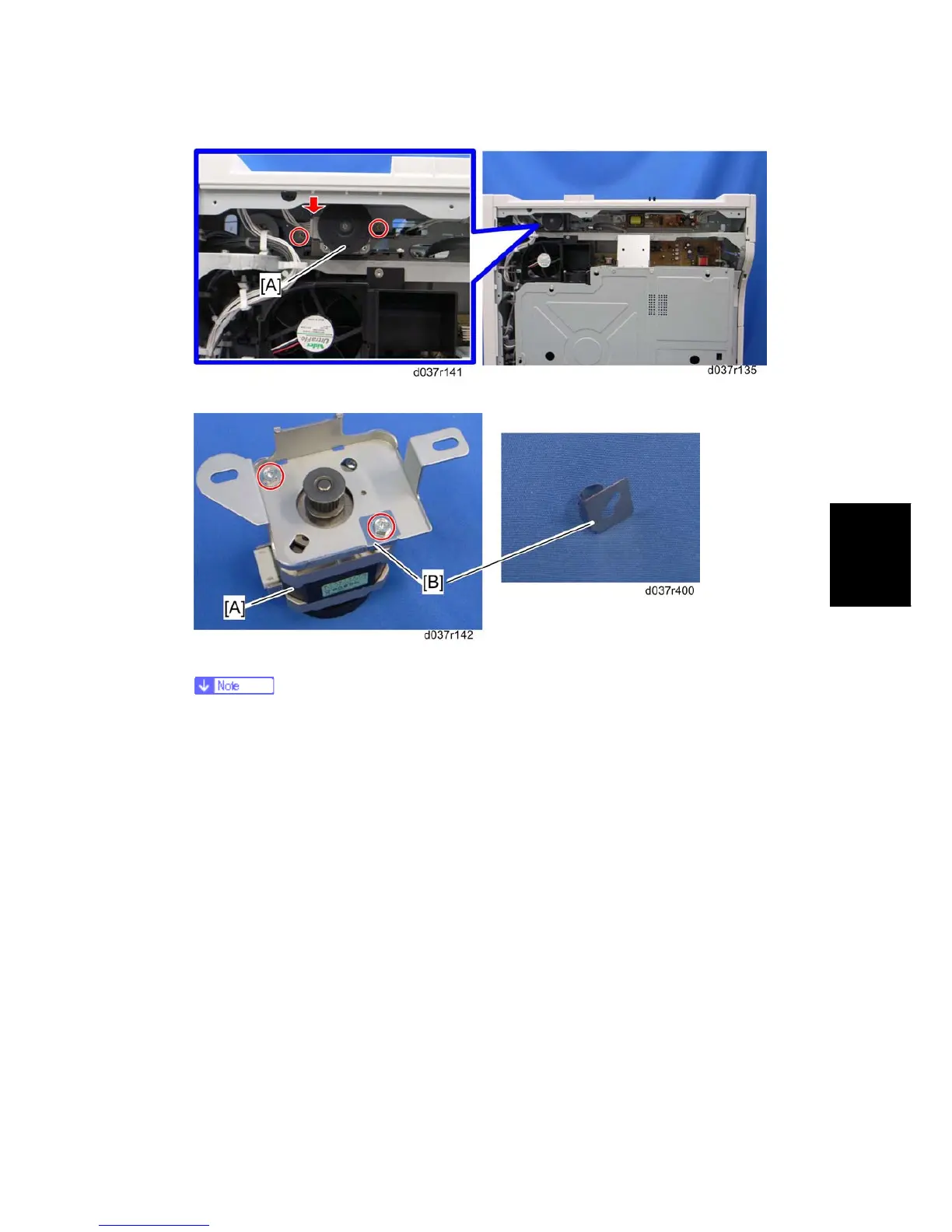

2. Scanner motor bracket [A] ( x 2, spring x 1,  x 1, timing belt x 1)
3. Scanner motor [A] ( x 2, ground plate [B] x 1)
 Make sure that the ground plate [B] is attached when installing the scanner
motor in the scanner motor bracket.
 Do the scanner image adjustment after replacing the scanner motor (
Section: Image Adjustment).
4.5.5 SENSOR BOARD UNIT (SBU)
1. Exposure glass ( Section: Exposure Glass)
