Ricoh Aficio MP C2550 Service Manual

Image Adjustment
SM 4-5 D037/D038/D040/D041
Replacement
& Adjustment
SP Code What It Does Adjustment Range
SP6-006-001 Side-to-Side Registration (1st side) ± 3.0 mm
SP6-006-002 Side-to-Side Registration (2nd side) ± 3.0 mm
SP6-006-003 Leading Edge Registration ± 5.0 mm
SP6-006-005 Buckle: Duplex Front ± 5.0 mm
SP6-006-006 Buckle: Duplex Rear ± 5.0 mm
SP6-006-007 Rear Edge Erase (Trailing Edge) ± 5.0 mm
ARDF sub-scan magnification
1. Put the temporary test chart on the ARDF. Then make a copy from one of the feed
stations.
2. Check the magnification ratio. Adjust with SP6-017-001 if necessary.
 Standard: ±5.0%
 Reduction mode: ±5.0%
 Enlargement mode: ±5.0%

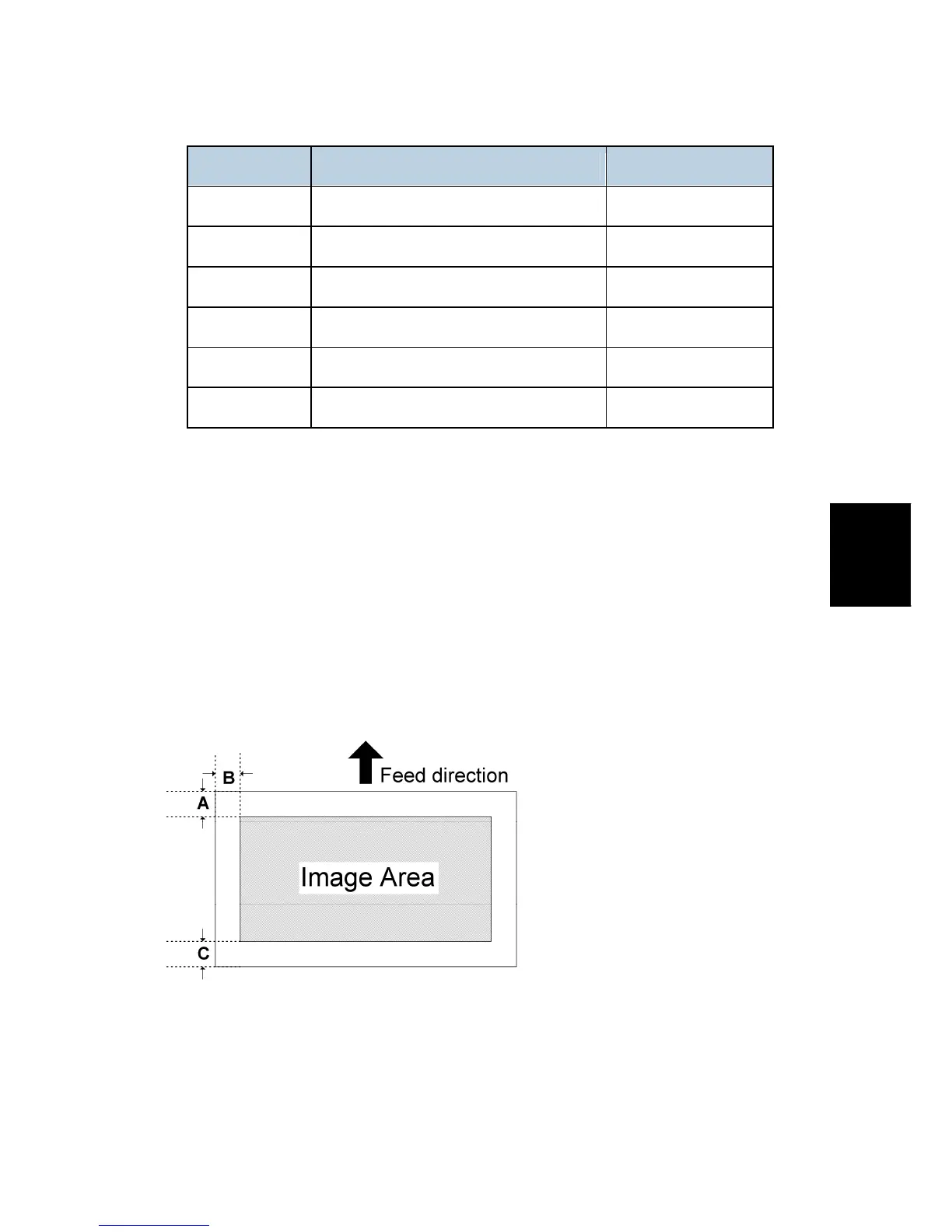

4.3.3 REGISTRATION
Image Area
A = C = 5.2 mm (0.2"), B = 2.0 mm
Make sure that the registration is adjusted within the adjustment standard range as shown
below.
