Paper Transfer
SM 4-69 D037/D038/D040/D041
Replacement
& Adjustment

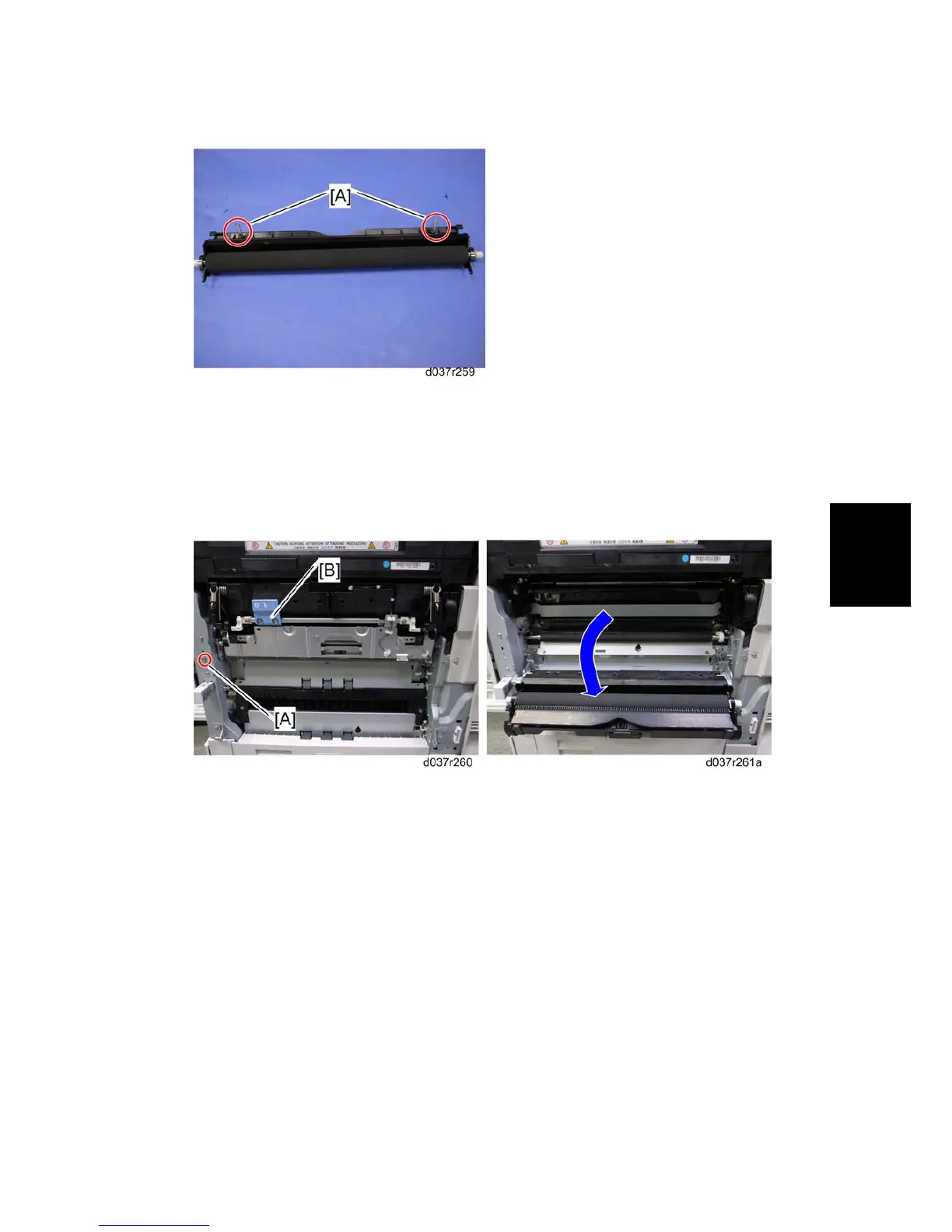

4. Remove the two springs [A].
 Keep these two springs from the old PTR unit and install them in the new PTR
unit.
4.9.2 OPENING THE PAPER TRANSFER UNIT
1. Duplex unit ( Section: Duplex Unit)
2. Hinge bracket [A] ( x 1)
3. Open the paper transfer unit [B].
4.9.3 ID SENSOR BOARD
1. Fusing unit ( Section: Fusing Unit)
2. Duplex unit ( Section: Duplex Unit)

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
