Ricoh Aficio MP C2550 Service Manual

Component Layout
D366 12 SM
2. DETAILED DESCRIPTIONS
2.1 COMPONENT LAYOUT

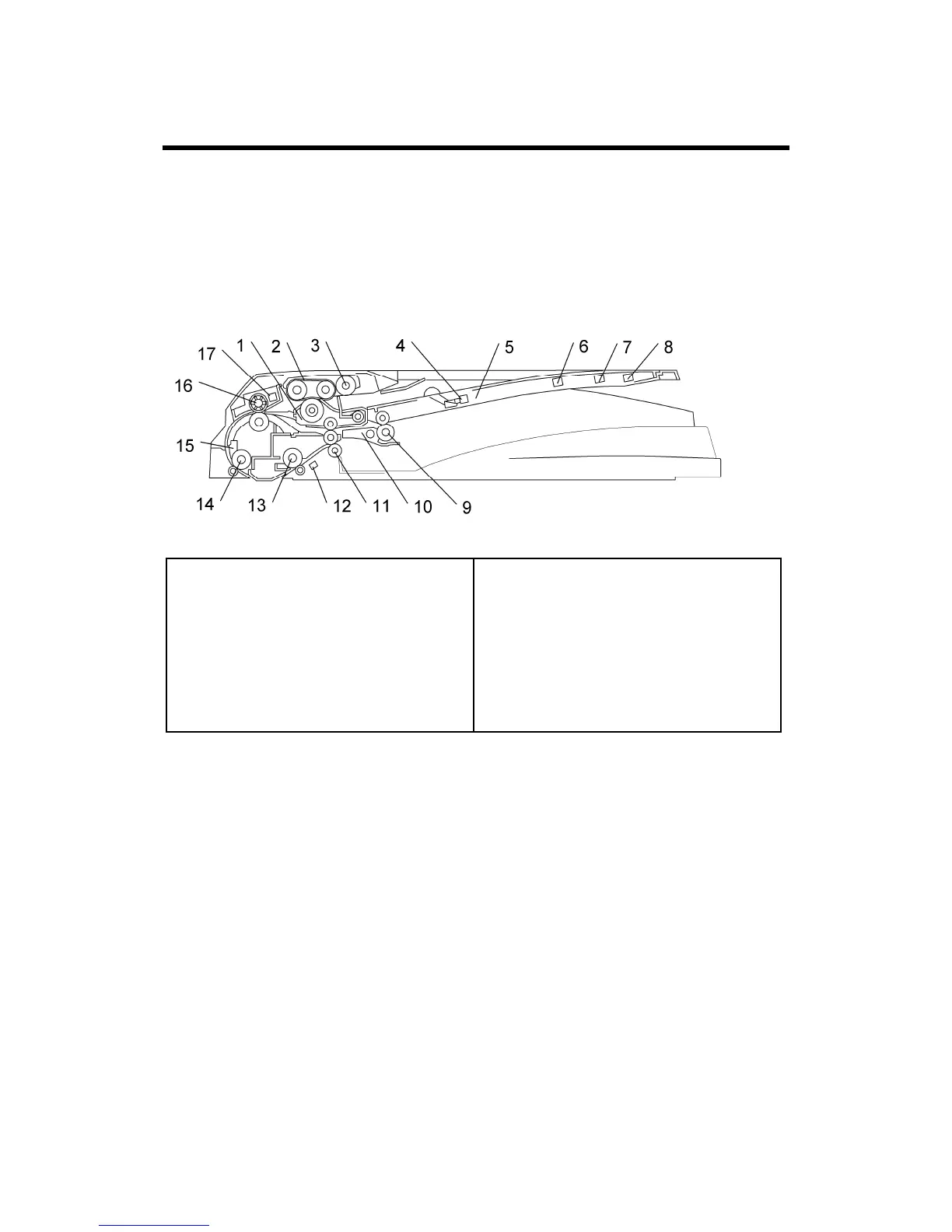

2.1.1 MECHANICAL COMPONENT LAYOUT
1. Separation Roller
2. Paper Feed Belt
3. Pick-up Roller
4. Original Trailing Edge Sensor
5. Original Tray
6. Original Length Sensor 1
7. Original Length Sensor 2
8. Original Length Sensor 3
9. Inverter Roller
10. Junction Gate
11. Exit Roller
12. Original Exit Sensor
13. Transport Roller
14. Registration Roller
15. Registration Sensor
16. Skew Correction Roller
17. Skew Correction Sensor

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
