Ricoh Aficio MP C2550 Service Manual

Paper Feed
SM 4-101 D037/D038/D040/D041
Replacement
& Adjustment
4.12 PAPER FEED
4.12.1 PAPER TRAY

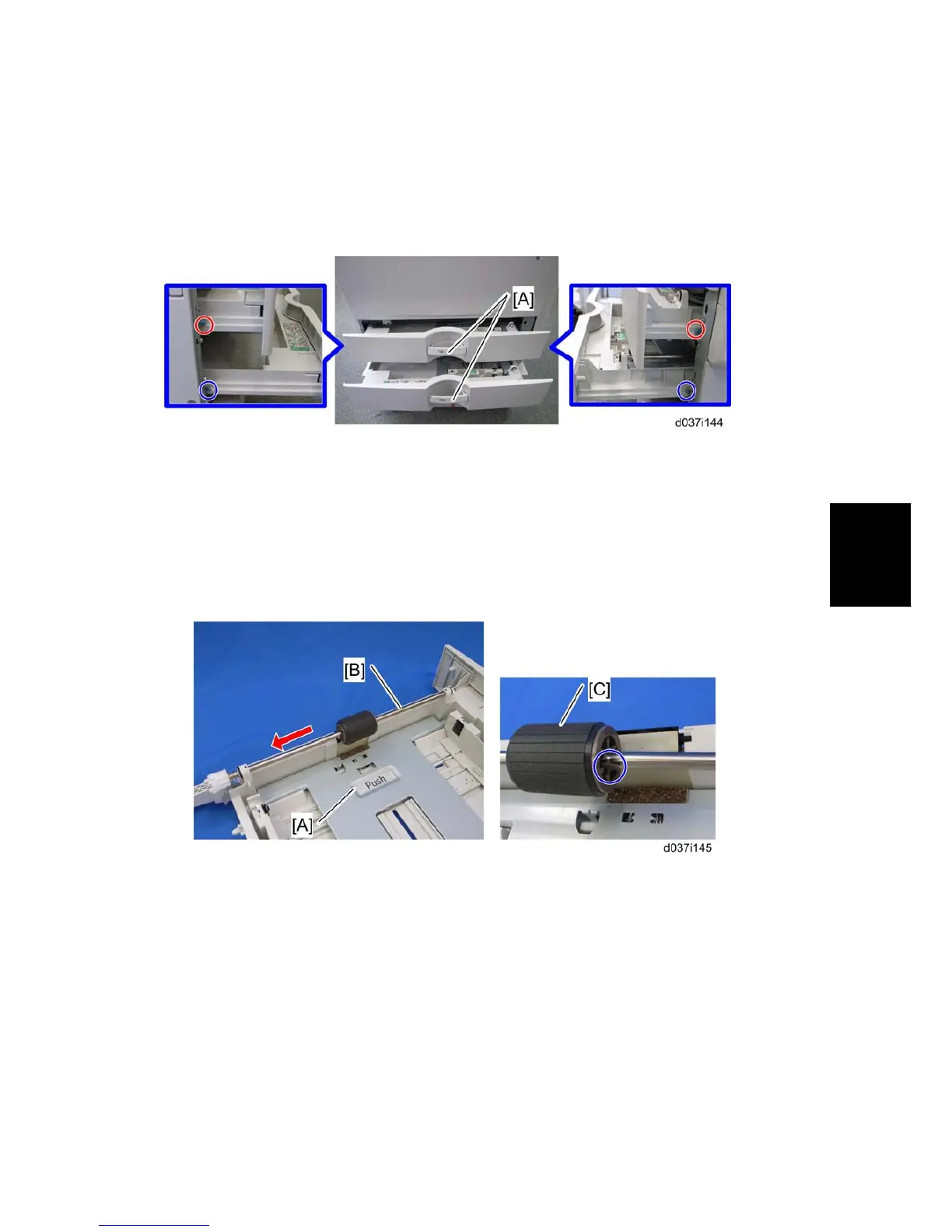

1. Pull paper tray 1 or 2 [A] part of the way out.
2. Remove two screws from both tray guides.
3. Pull out paper tray 1 or 2 [A].
4.12.2 FEED ROLLER
Tray 1 and Tray 2
1. Paper tray 1 or 2 ( Section: Paper Tray)
2. Press down the bottom plate [A].
3. Slide the feed roller shaft [B] to the rear side ( x 1).
4. Feed roller [C] (hook x 1)
When reinstalling the feed roller
Do not touch the feed roller with your bare hands when replacing it. If you do, clean the
feed roller with a damp cloth or alcohol.
4.12.3 FRICTION PAD
1. Paper tray 1 or 2 ( Section: Paper Tray)
