Ricoh Aficio MP C2550 Service Manual

Component Layout
D366 16 SM
PCBs
PCB1 Main
Interfaces the sensor signals with the copier,
and transfers the magnetic clutch, solenoid
and motor drive signals from the copier.
6

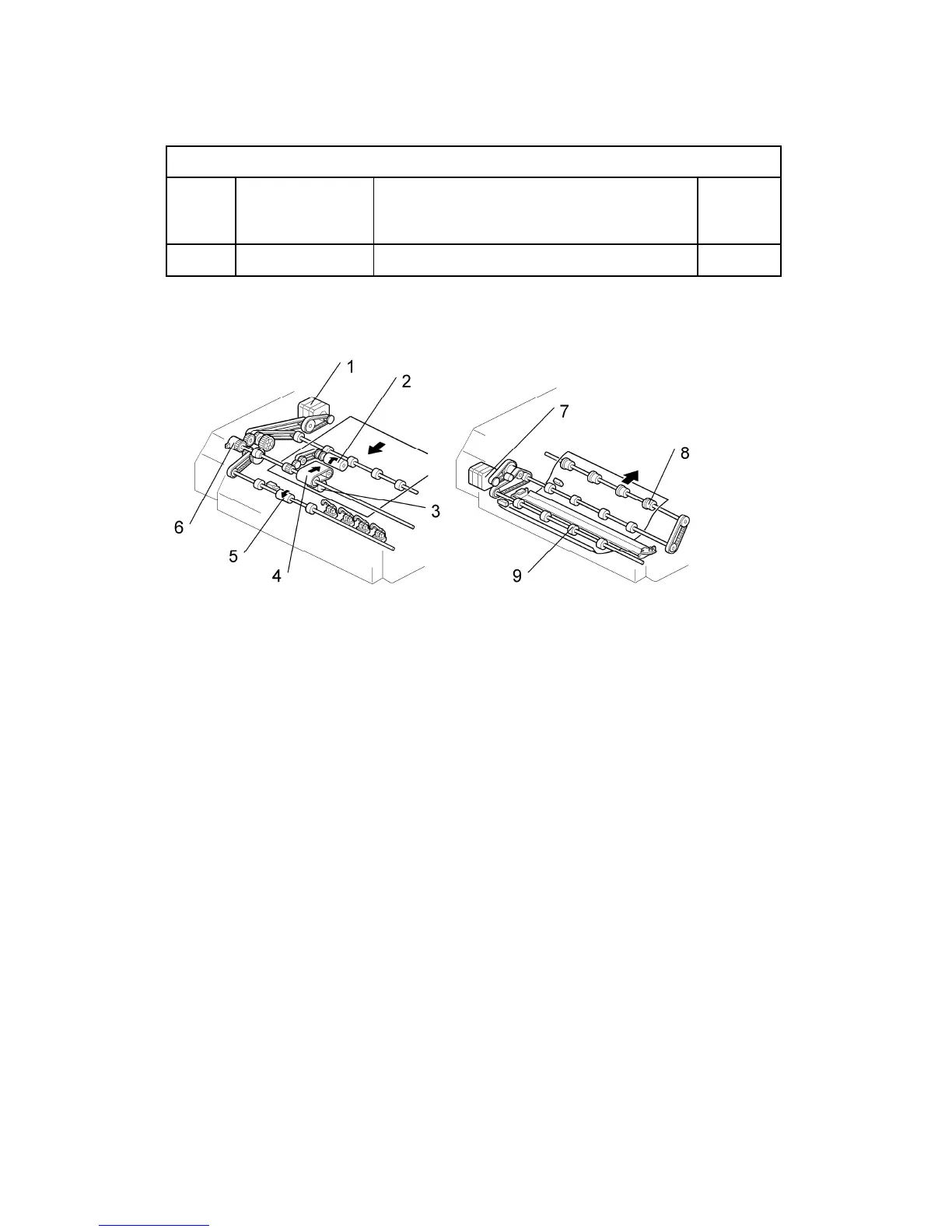

2.1.3 DRIVE LAYOUT
1. Feed Motor
2. Pick-up Roller
3. Separation Roller
4. Feed Belt
5. Skew Correction Roller
6. Feed Clutch
7. Transport Motor
8. Exit Roller
9. Registration Roller
 Feed Motor: Drives the feed belt, separation, pick-up, and skew correction rollers.
 Transport Motor: Drives the registration and exit rollers.

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
