Exterior Covers
D037/D038/D040/D041 4-20 SM
4. Operation panel [B]
For D037/D040

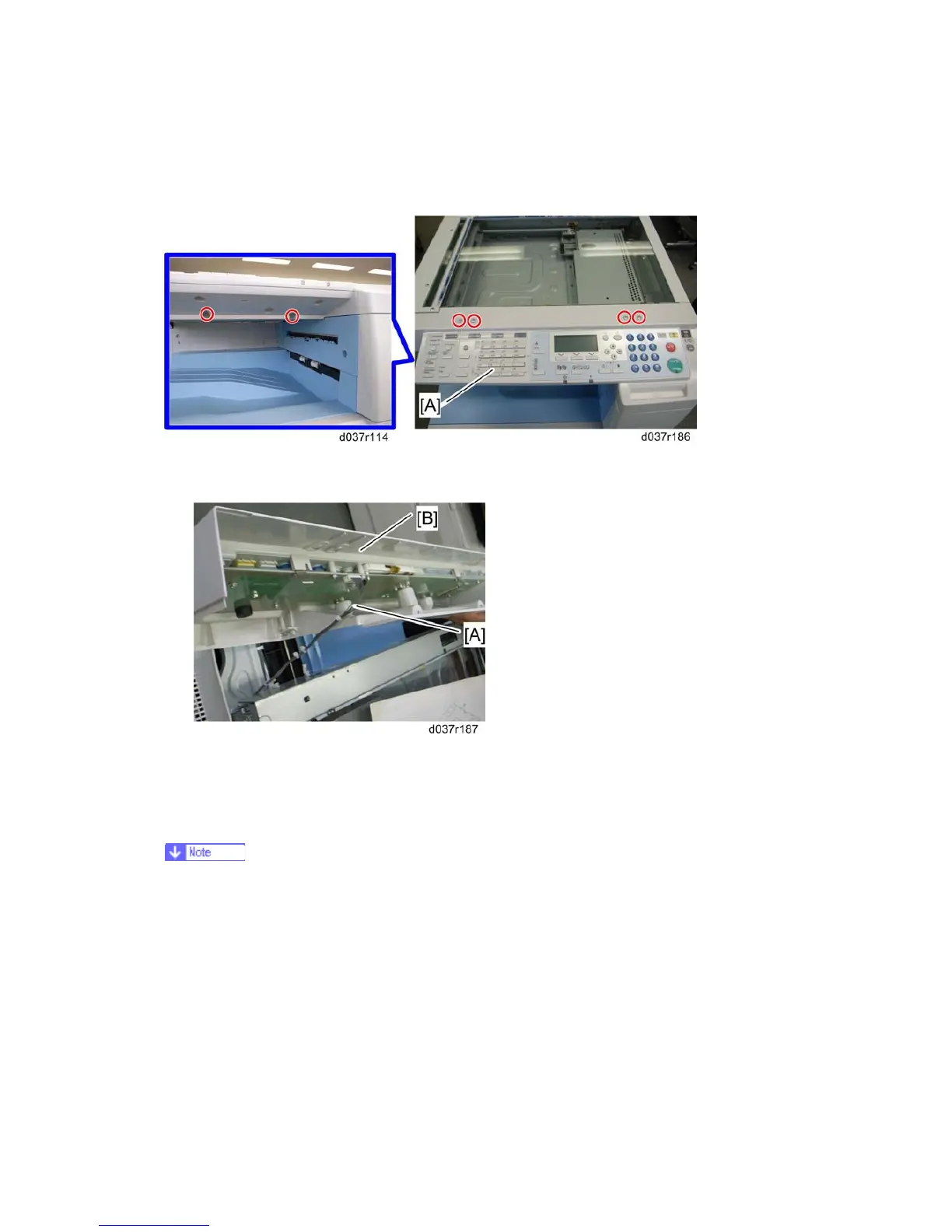

1. Remove six screws on the operation panel.
2. Slide the operation panel to the front side.
3. Remove the connector [A].
4. Operation panel [B]
4.4.10 TOUCH PANEL POSITION ADJUSTMENT (D038/D041)
It is necessary to calibrate the touch panel at the following times:
When you replace the operation panel.
When you replace the controller board.
When the touch panel detection function does not operate correctly
Do not use items [2] to [9] on the Self-Diagnostic Menu. These items are for design use
only.
1. Press S, press , press \ 5 times to open the Self-Diagnostics
menu.
