Ricoh Aficio MP C2550 Service Manual

Basic Operation
SM 17 D366
ARDF DF3030
D366
2.2 BASIC OPERATION
2.2.1 ORIGINAL SET AND SIZE DETECTION

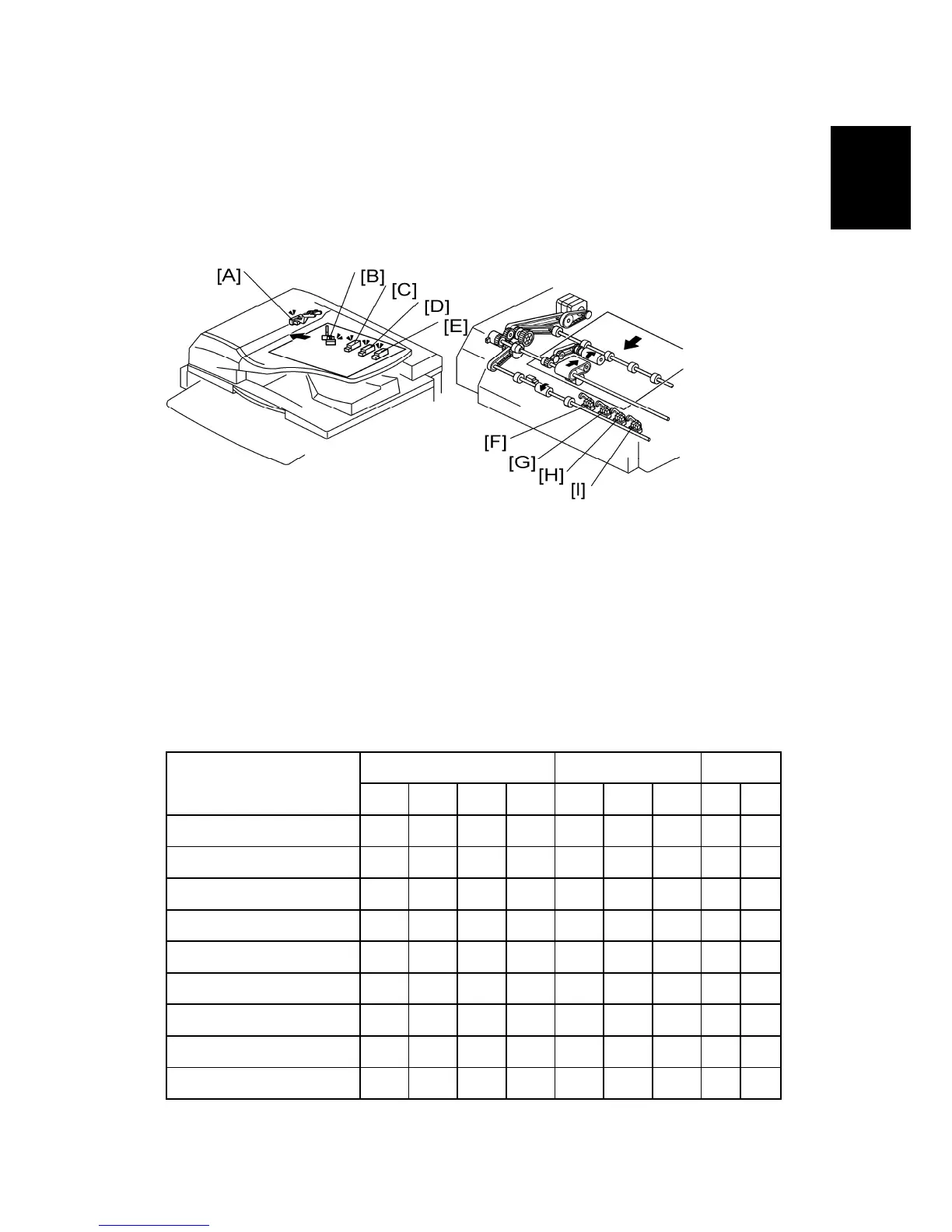

The original set sensor [A] detects if the original is set or not. The original sensor [B]
detects if the original is on the original tray or not (this lets the machine know as early as
possible, whether there is another original on the tray).
The original size detection mechanism consists of the four original width sensors ([F]: Width
Sensor S, [G]: Width Sensor M, [H] Width Sensor L, [I]: Width Sensor LL) and three original
length sensors ([C]: Length Sensor S, [D]: Length Sensor M, [E]: Length Sensor L). Based
on the combined output of the length sensors and the width sensors, the machine can
detect the size of the original. This integrated detection mechanism is detailed in the table
below.
Width Sensor Length Sensor Area
Size
S M L LL S M L LT A/B
A3/SEF (297 x 420) ON ON ON ON ON ON ON O O
B4/SEF (257 x 364) ON ON - - ON ON ON - O
A4/SEF (210 x 297) ON - - - ON ON - O O
A4/LEF (297 x 210) ON ON ON ON - - - O O
B5/SEF (182 x 257) - - - - ON - - - O
B5/LEF (257 x 182) ON ON - - - - - - O
A5/SEF (148 x 210) - - - - - - - - O
A5/LEF (210 x 148) ON - - - - - - - O
11" x 17"/SEF (DLT) ON ON ON - ON ON ON O
1
O
5

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
