Ricoh Aficio MP C2550 Service Manual

Paper End Detection
SM 17 D331
Paper Tray
Unit PB3030
D331
2.4 PAPER END DETECTION

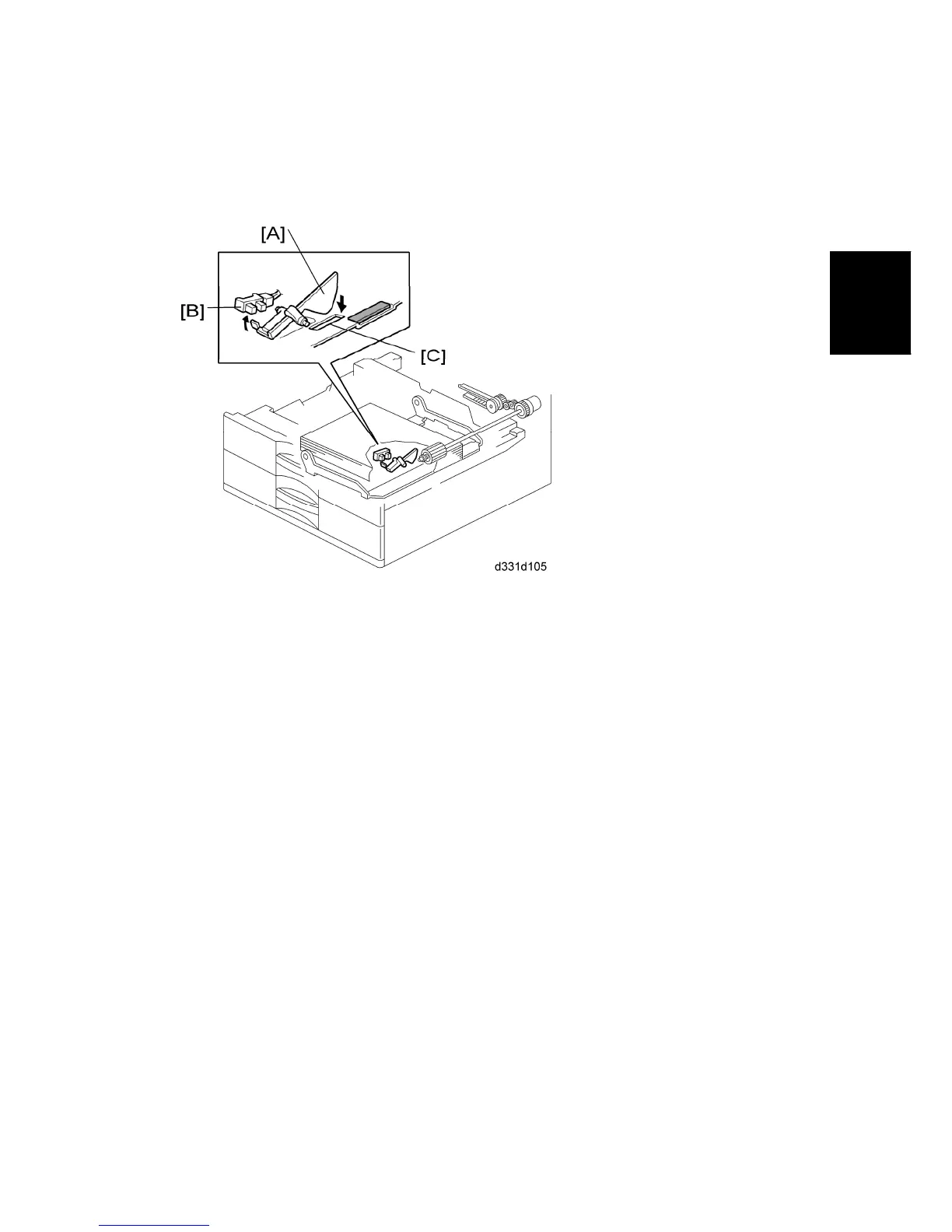

If there is some paper in the paper tray, the paper stack raises the paper end feeler [A] and
the paper end sensor [B] is deactivated.
When the paper tray runs out of paper, the paper end feeler drops into the cutout [C] in the
tray bottom plate and the paper end sensor is activated.
When the paper tray is drawn out with no paper in the tray, the shape of the paper end
feeler causes it to lift up.

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
