Ricoh Aficio MP C2550 Service Manual

Scanner Unit
SM 4-37 D037/D038/D040/D041
Replacement
& Adjustment
the ring) through the notch.
3. Wind the right end counterclockwise (shown from the machine’s front) five times. Wind
the left end clockwise three times.

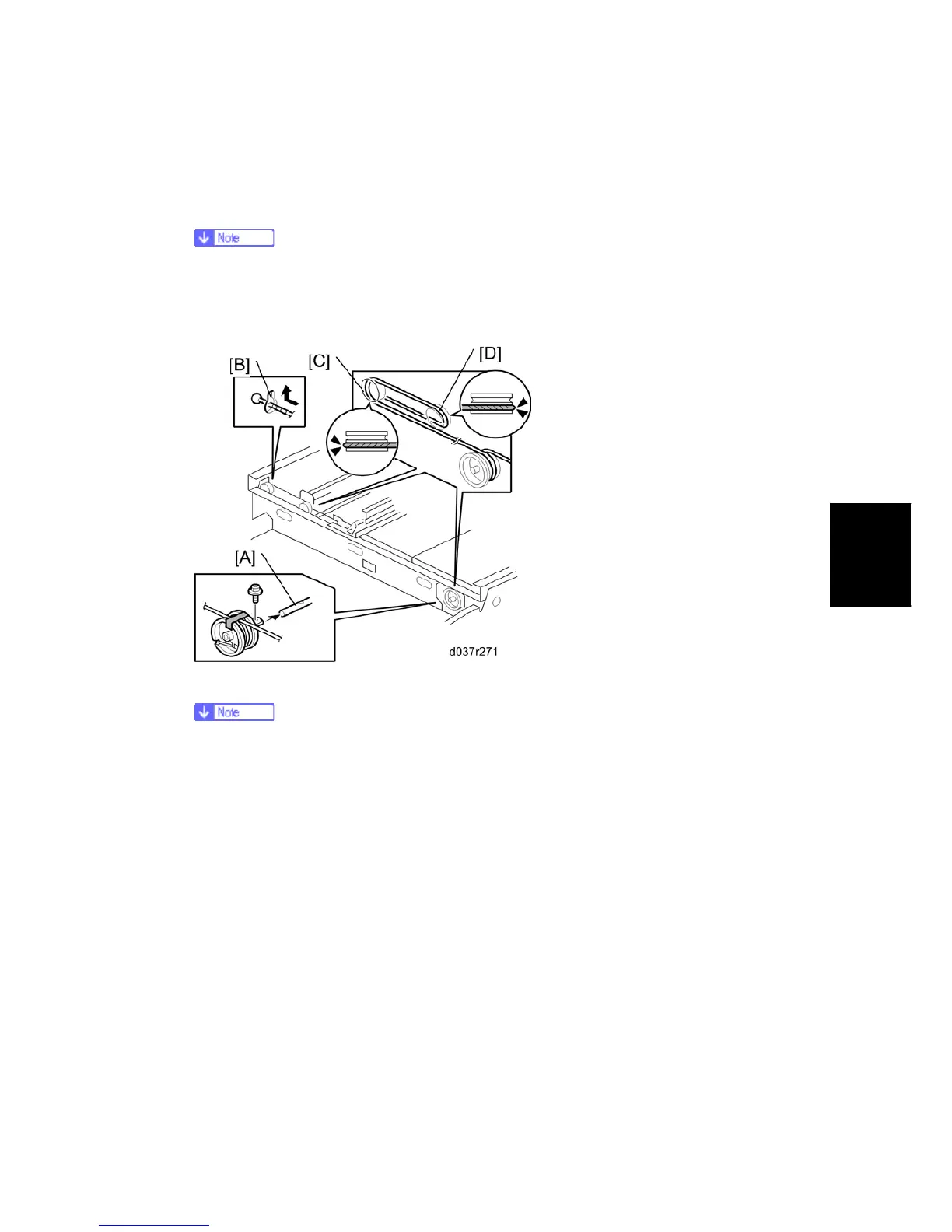

 The two green marks [C] come together when you have done this. Stick the
wire to the pulley with tape. This lets you easily handle the assembly at the
time of installation.
4. Install the drive pulley on the shaft [A].
 Do not attach the pulley to the shaft with the screw at this time.
5. Insert the left end into the slit [B]. The end should go via the rear track of the left pulley
[C] and the rear track of the movable pulley [D].
