Ricoh Aficio MP C2550 Service Manual

Electrical Components
D426 2 SM

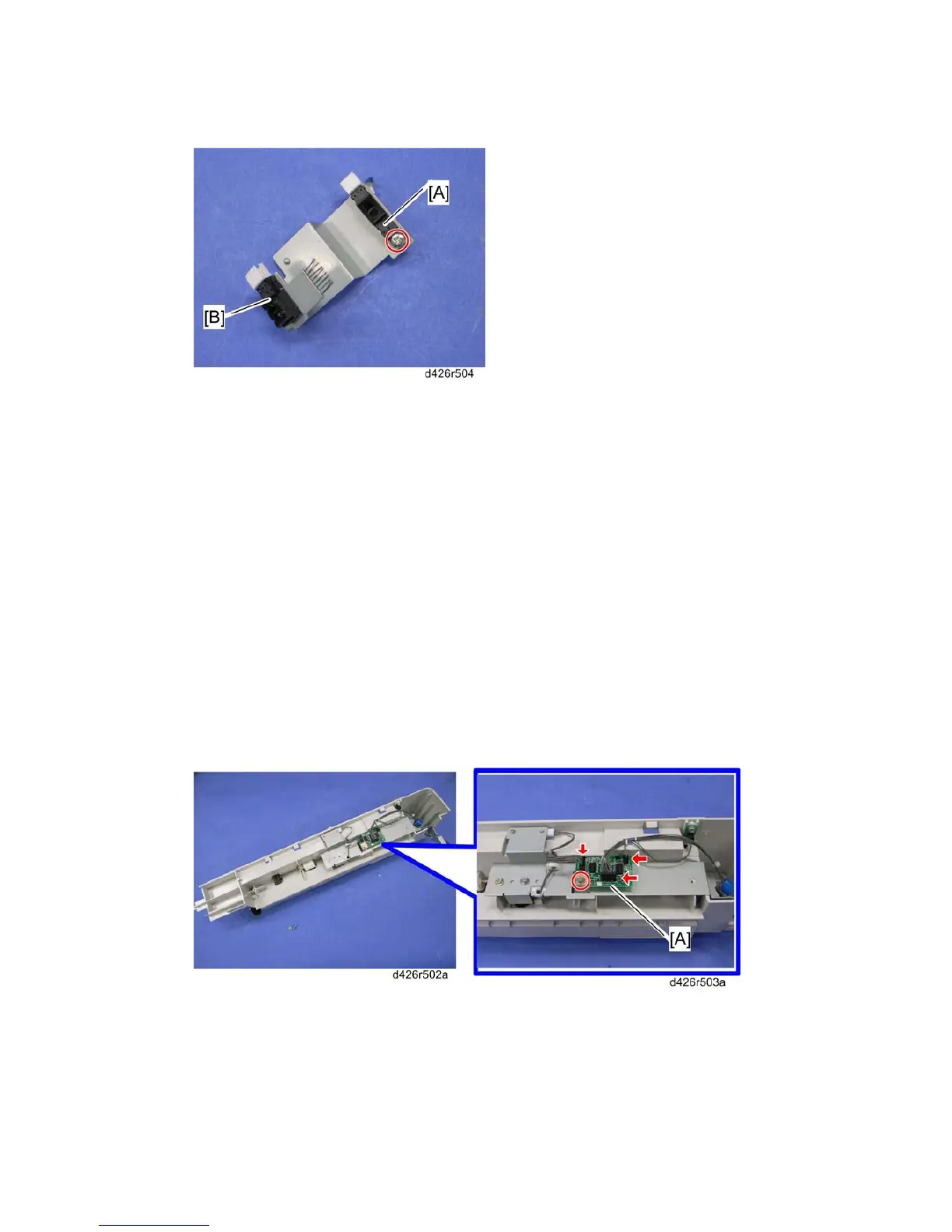

4. Sensors;
 [A]: Paper sensor ( x 1)
 [B]: 1-bin tray exit sensor (hooks)
When reinstalling these sensors
Both sensors have a 3-pin connector. Be careful to connect the correct harnesses from the
1-bin tray control board to each sensor.
 The blue connector from the 1-bin tray control board must be connected to the paper
sensor.
 The white connector from the 1-bin tray control board must be connected to the 1-bin
tray exit sensor.
1.1.2 1-BIN TRAY CONTROL BOARD
1. 1-bin tray unit
2. 1-bin tray bottom cover ( 1-Bin Tray Exit Sensor and Paper Sensor)
3. 1-bin tray control board [A] ( x 1,  x 3)

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
