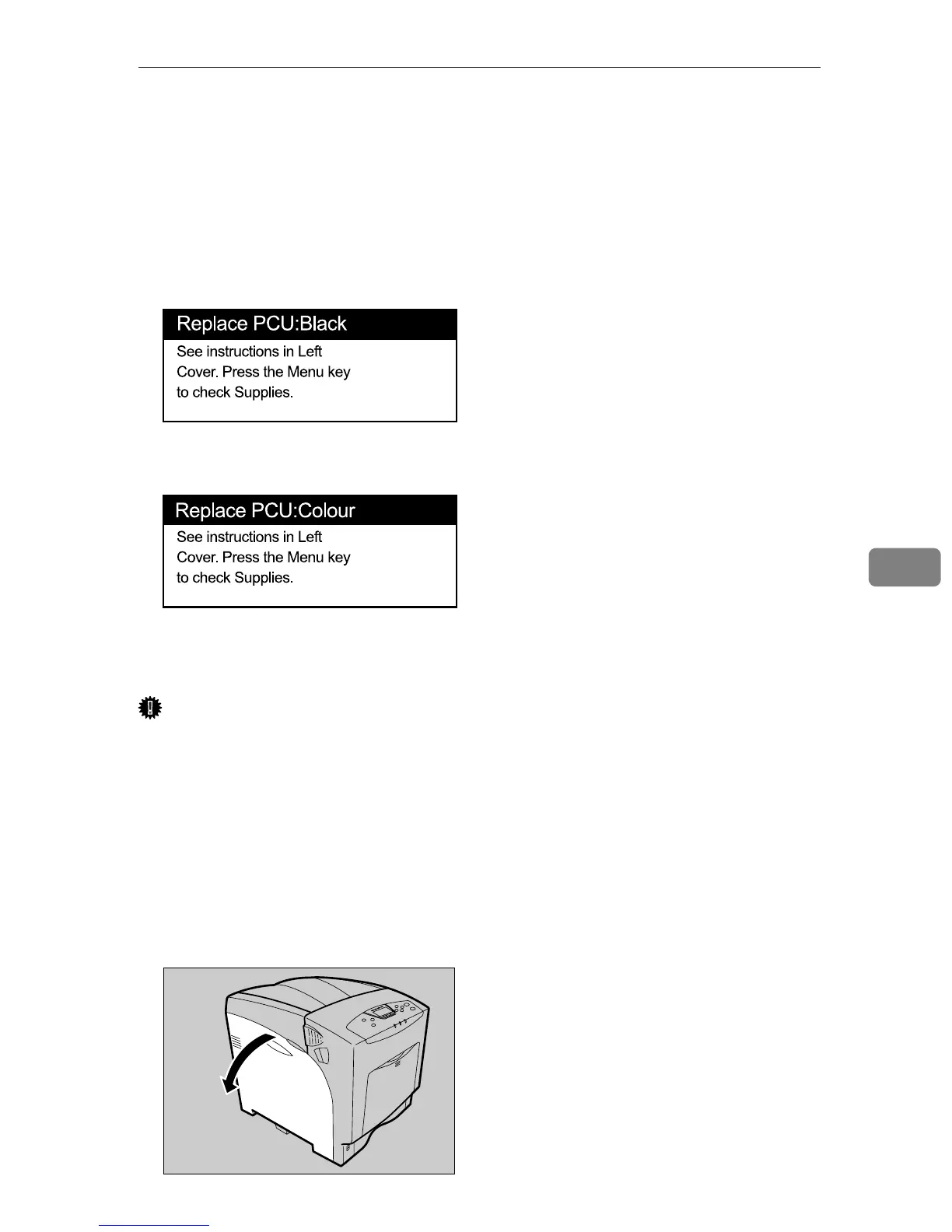

Replacing the Photo Conductor Unit
109
6
Replacing the Photo Conductor Unit
The following procedure describes replacing the first photo conductor unit from
the right. The procedure is the same for all four photo conductor units.
❖ When to replace the photo conductor unit
Replace the photo conductor unit if the following messages appear:
•“Replace PCU:Black.”
Replace the black photo conductor unit.
•“Replace PCU:Colour.”
Replace the three color photo conductor units.
The color photo conductor units (yellow, cyan, and magenta) are supplied as
a single item.
Important
❒ Exposure to light reduces photo conductor unit performance. Replace the
unit as quickly as possible.
❒ Do not pull out the photo conductor unit with force or haste - it may fall and
you may damage the printer.
❒ Take care that nothing comes into contact with the surface of the photo conductor.
❒ Place no objects on the left or inner cover.
A Turn off the power, and then unplug the power cable.
B Carefully open the left cover.
AQC012S
