Guide to the Printer
4
1

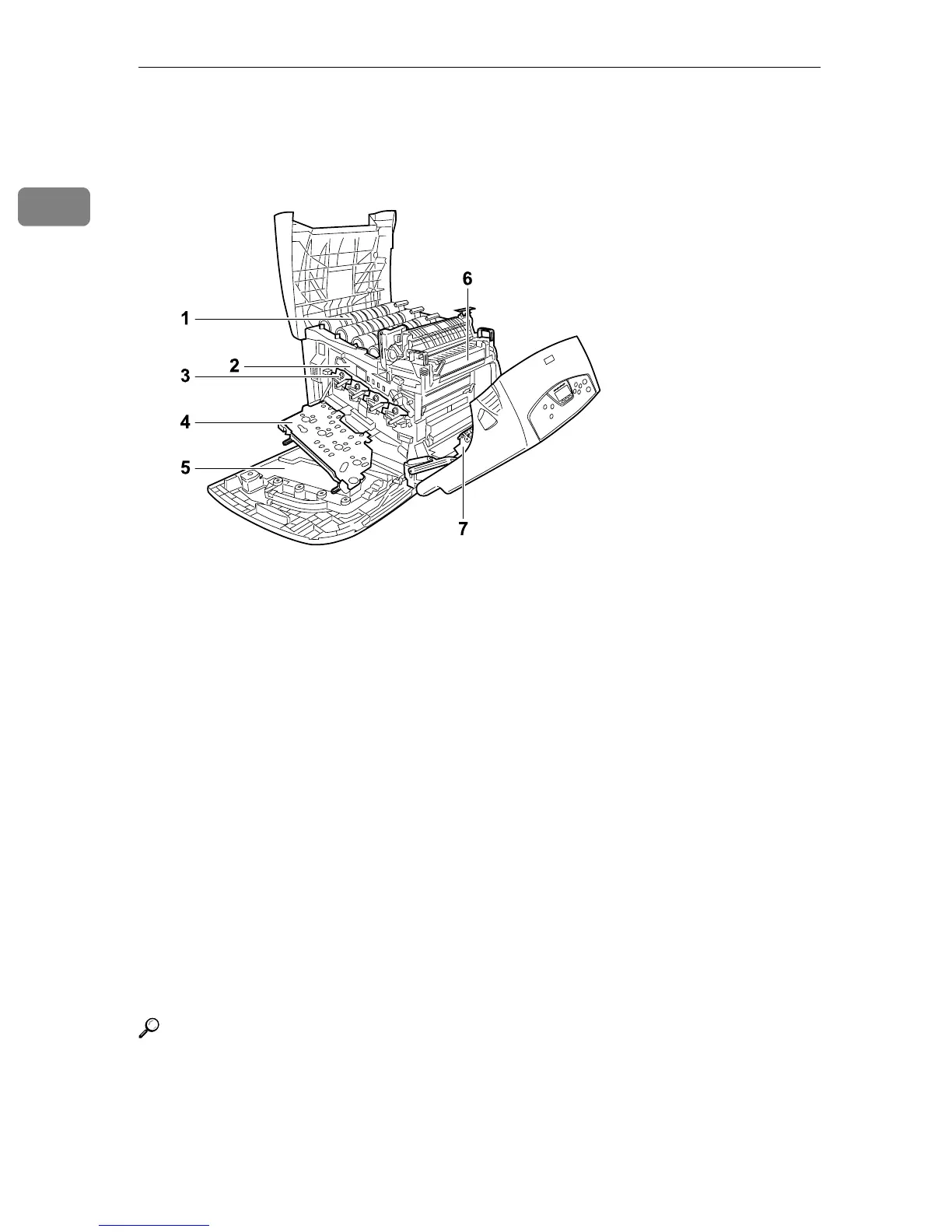

Inside
1. Toner Cartridge
Loads from the printer rear, in the order
of yellow (Y), cyan (C), magenta (M), and
black (K).
If the message which prompts you to re-
place toner appears on the screen, replace
the indicated color of the toner cartridge.
2. Intermediate Transfer Unit
(Transfer Unit)
If the message which prompts you to re-
place it appears on the display, replace
the transfer unit .
3. Photo Conductor Unit
If the message which prompts you to re-
place it appears on the display, replace
the photo conductor unit.
4. Inner Cover
Open this when replacing the photo con-
ductor units or intermediate transfer
unit.
5. Waste Toner Bottle
Collects toner that is wasted during
printing.
If the message which prompts you to re-
place it appears on the display, replace
the waste toner bottle.
6. Fusing Unit
If the message which prompts you to re-
place it appears on the display, replace
the fusing unit.
7. Transfer Roller
If the message which prompts you to re-
place it appears on the display, replace
the transfer roller.
Reference
For details about the messages which appear on the screen to prompt you to
replace the units, see p.155 “Error & Status Messages on the Control Panel”.
AQC023S
To Next Page
