Replacing the Maintenance Kit
127
6

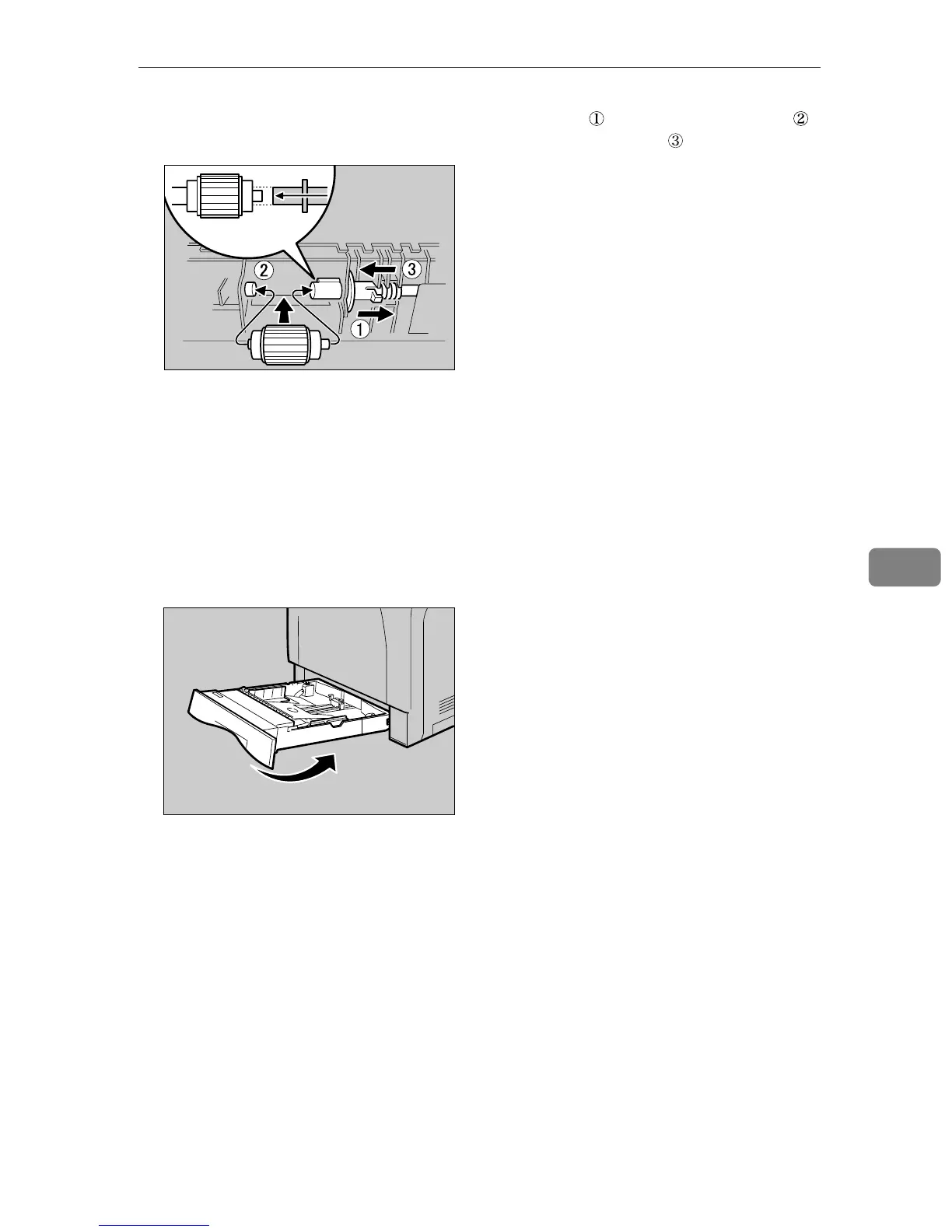

C While sliding the green lock lever to the right ( ), set the new roller ( ).
Then, return the green lock lever to its original position ( ).
Check the green lock lever secures the roller correctly by making sure the new
roller rotates smoothly.
D If the printer has the optional paper feed unit(s) installed, follow the same
procedure or remove only the additional tray to replace the paper feed roller.
If you have two paper feed units installed, also replace both paper feed rollers.
E Place paper in the paper trays and additional removed paper trays. Lift the
front of the tray, and slide it carefully into the printer, until it stops.
AET401S
AET045S
To Next Page
