Installing Options
12
2
❖ Interior

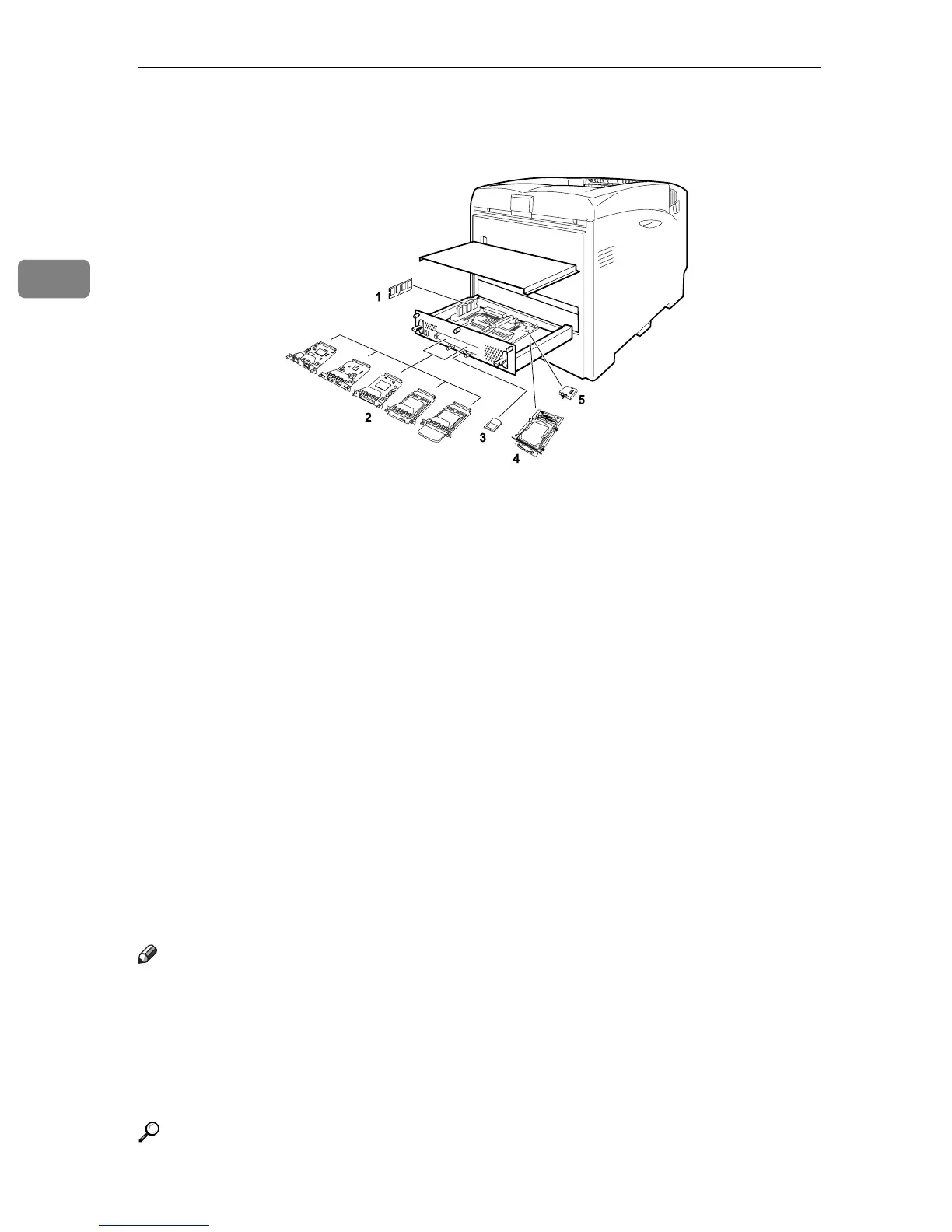

1. Memory Unit Type D 128MB/Mem-
ory Unit Type E 256MB (SDRAM mod-
ule)
Install 128 MB or 256 MB SDRAM
module into the controller board slot.
See p.17 “Attaching Memory Unit
Type D 128MB, Memory Unit Type E
256MB (SDRAM Module)”.
2. Optional boards
See p.33 “Attaching IEEE 802.11b In-
terface Unit”.
See p.36 “Attaching Bluetooth Inter-
face Unit Type 3245”.
See p.39 “Attaching IEEE 1284 Inter-
face Board Type A”.
See p.41 “Attaching the USB Host In-
terface Board Type A”.
See p.43 “Attaching Gigabit Ethernet
Board Type A”.
3. Optional units
See p.46 “Attaching Data Overwrite
Security Unit Type E”.
See p.48 “Attaching the Camera Direct
Print Card”.
See p.50 “Attaching VM Card Type
D”.
See p.52 “Attaching Data Storage
Card Type A”.
4. Hard Disk Drive Type 4000
See p.27 “Attaching Hard Disk Drive
Type 4000”.
5. User Account Enhance Unit Type E
See p.22 “Attaching User Account En-
hance Unit Type E”.
Note
❒ You can have two of the following types of extension board installed at the
same time: IEEE 802.11b Interface Unit, Bluetooth Interface Unit Type 3245,
IEEE 1284 Interface Board Type A, USB Host Interface Board Type A, and Gi-
gabit Ethernet Board Type A.
❒ Some printer models come with the Expansion Hard Disk Drive Unit and
Data Overwrite Security Unit installed as default.
Reference
For the specifications of each option, see p.182 “Specifications”.
