Ricoh AficioSP C410DN - Page 42

Installing Options
30
2

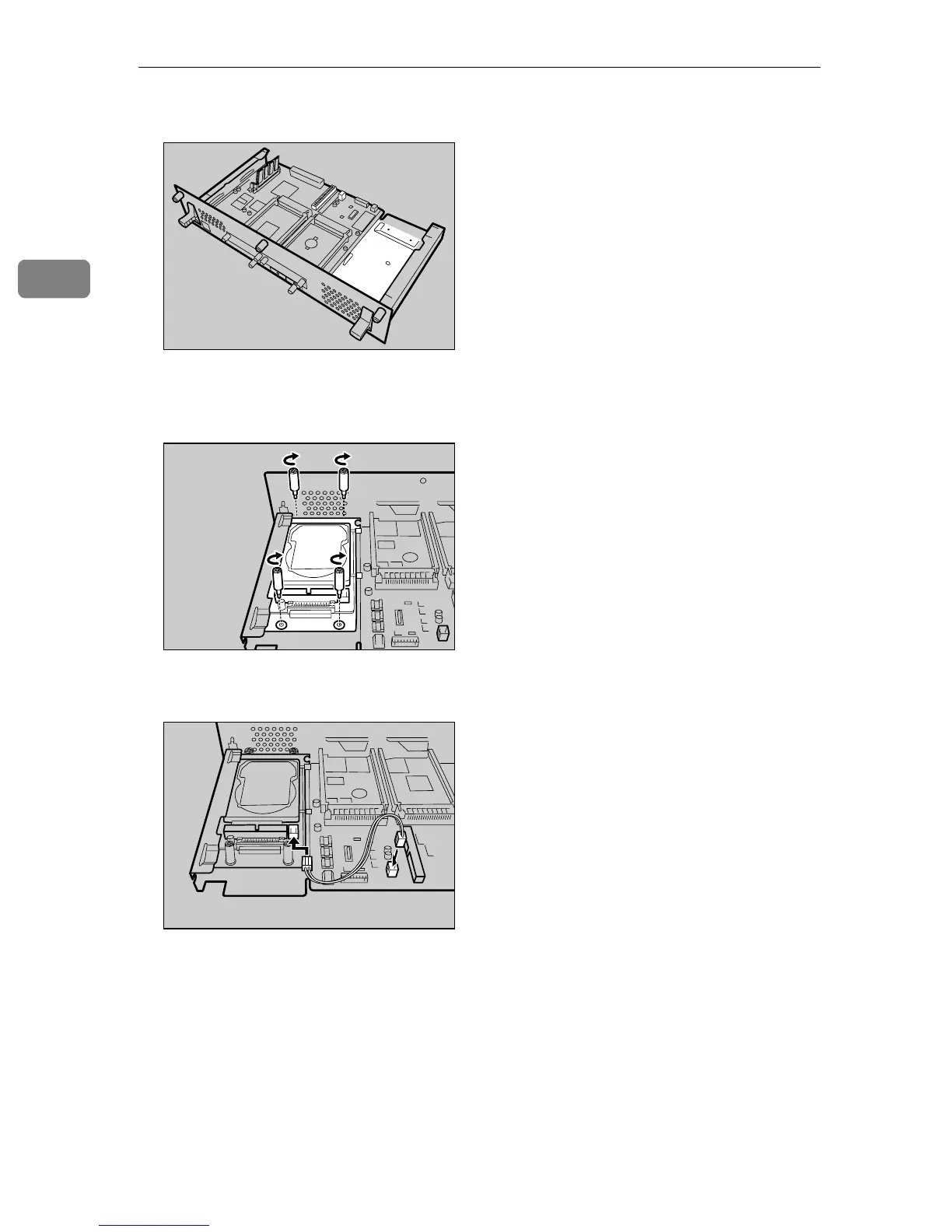

F Be sure to install the hard disk drive unit as shown.
G Use the screws supplied with the hard disk drive to secure the unit to the
controller board.
H Connect the power cable to the hard disk drive and controller board.
AET069S
AET087S
AET088S
