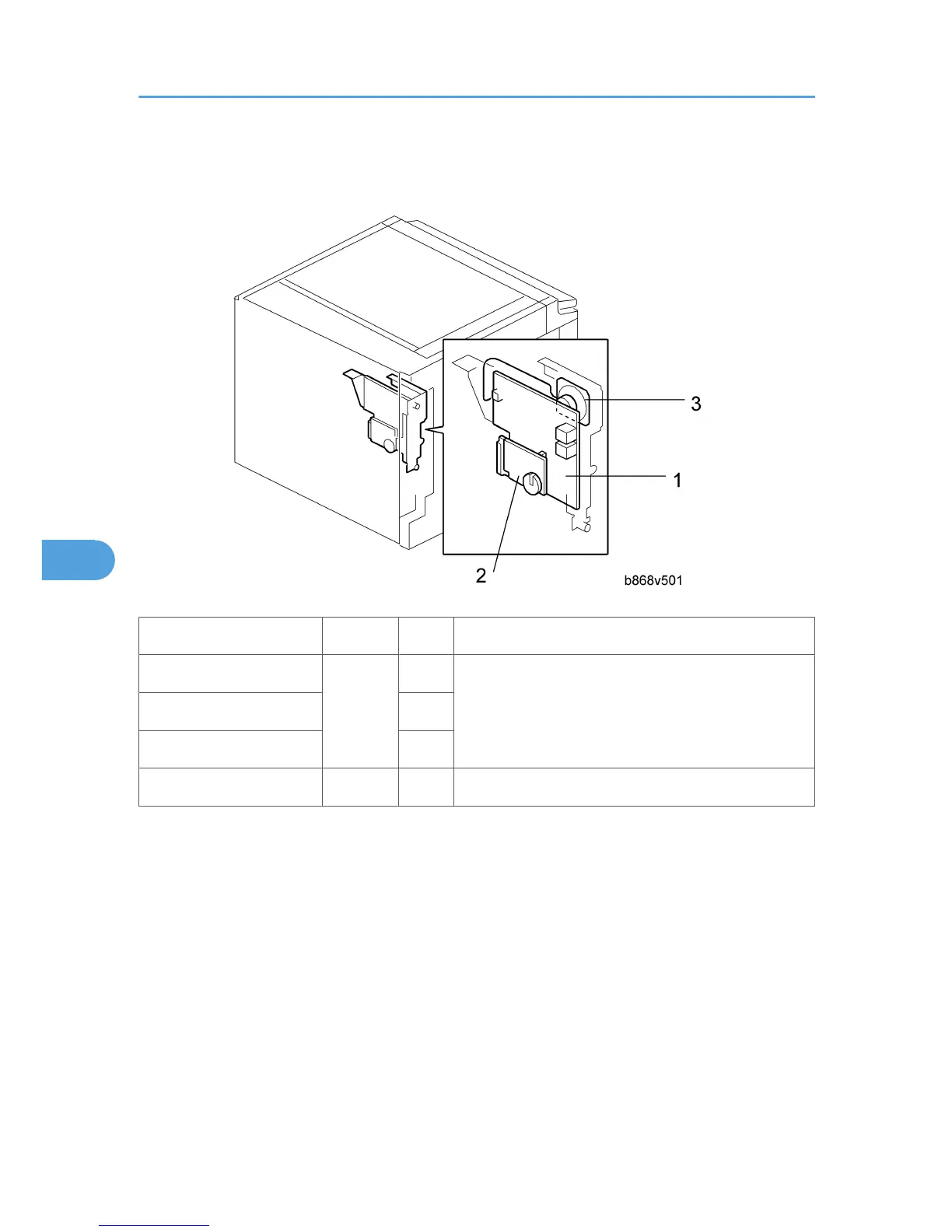

Fax Unit Configuration
Component
Code
No.
Remarks
FCU
B868
1
Included with fax unit
MBU
2
Speaker
3
Handset Type 1018
B433
-
NA only. Common with PG-C1
