2. Replacement and Adjustment
FCU
1.

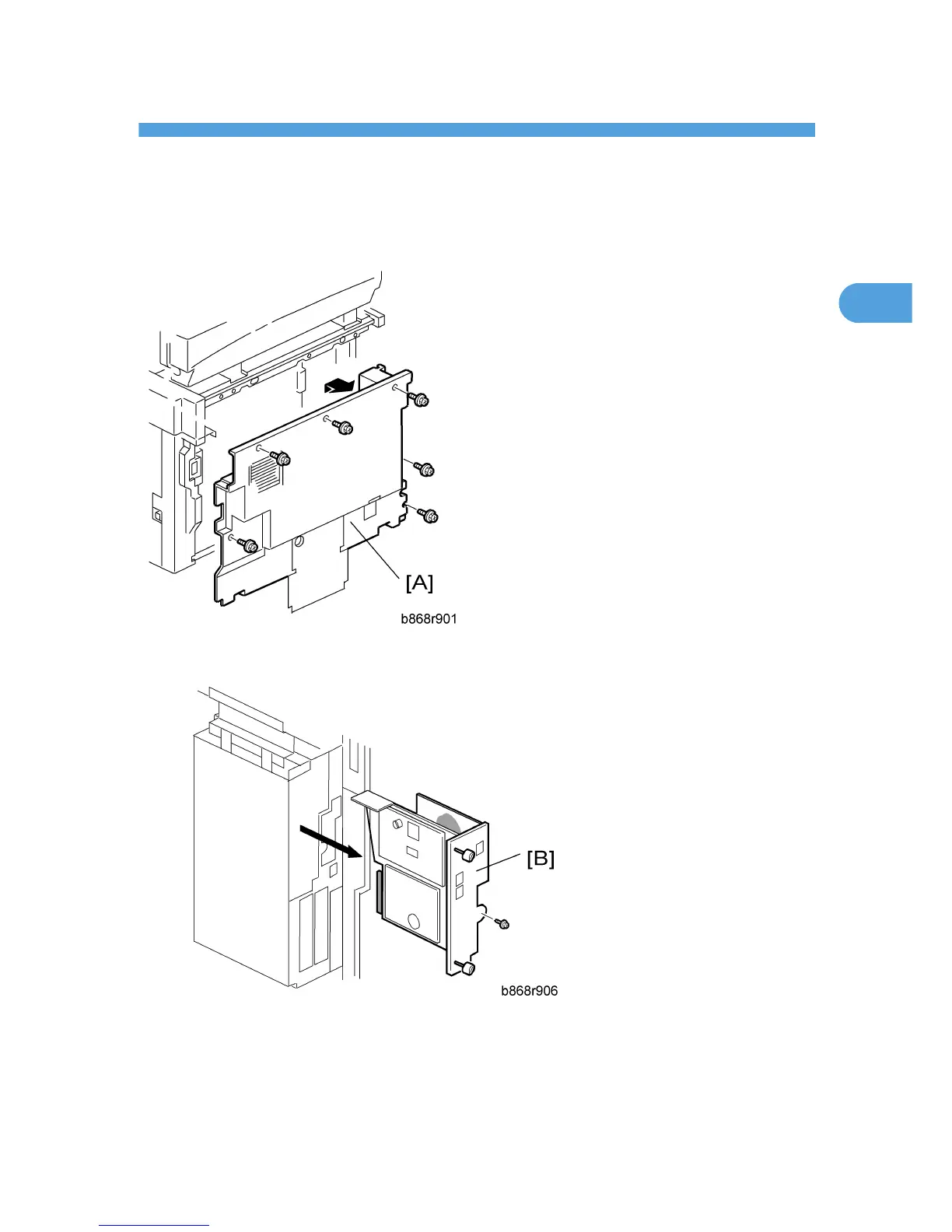

Remove the rear cover [A] (
x 6).
2.
FCU [B] (
x 3)
When installing the new FCU
1.
When you replace
the FCU
board, remove the
MBU board
from the old
FCU board and install it
on
the new FCU board.
