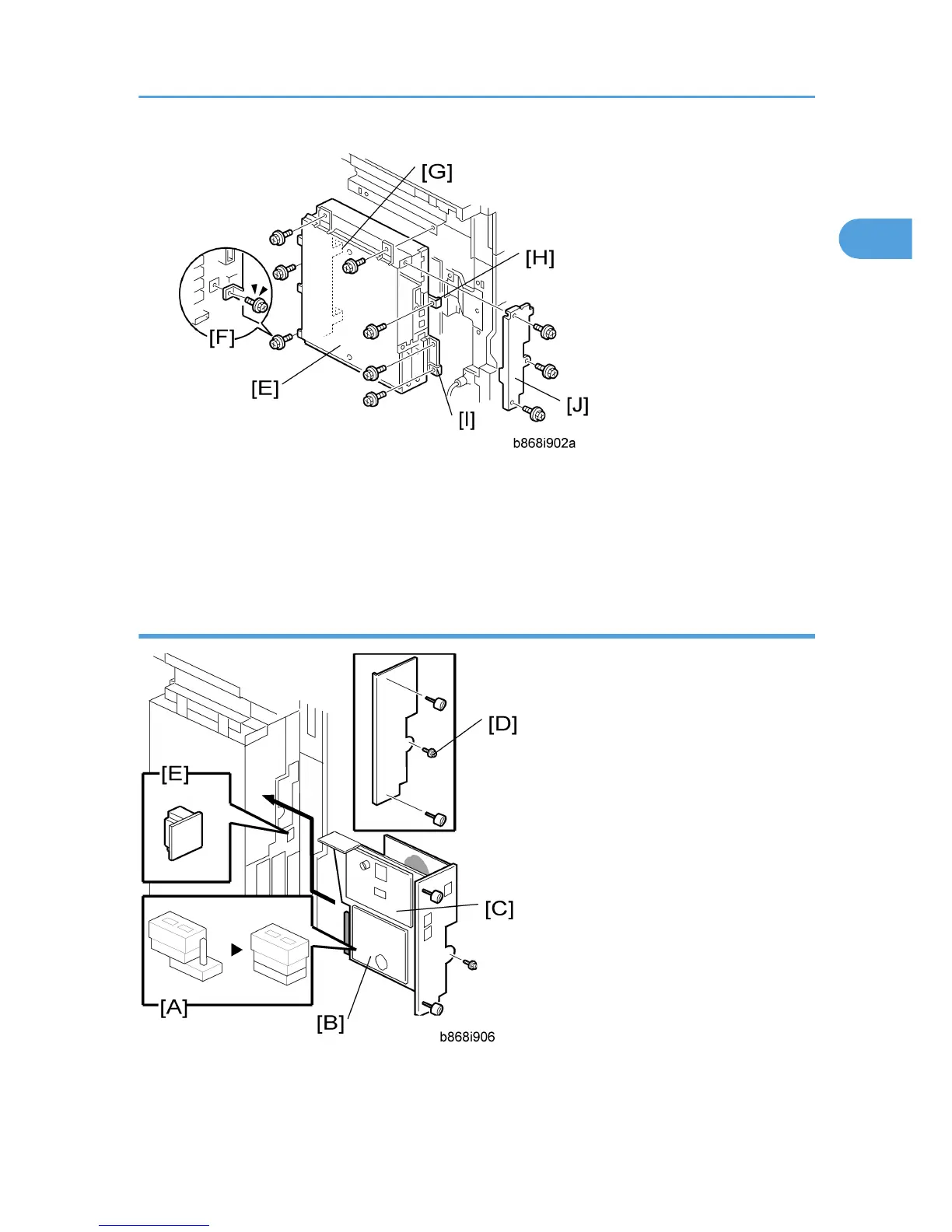

5. Connect the controller box [E] to the BICU. Make sure that the BICU is not damaged [F] and that the
three openings [G][H][I] hold the controller box.
6. Fasten the screws ( x 7 [including the screw [C]).
7. Remove the FCU cover [J] ( x 3).
Step 2–Fax
1. Short the jumper [A] on the MBU [B].
Fax Unit (B868)
