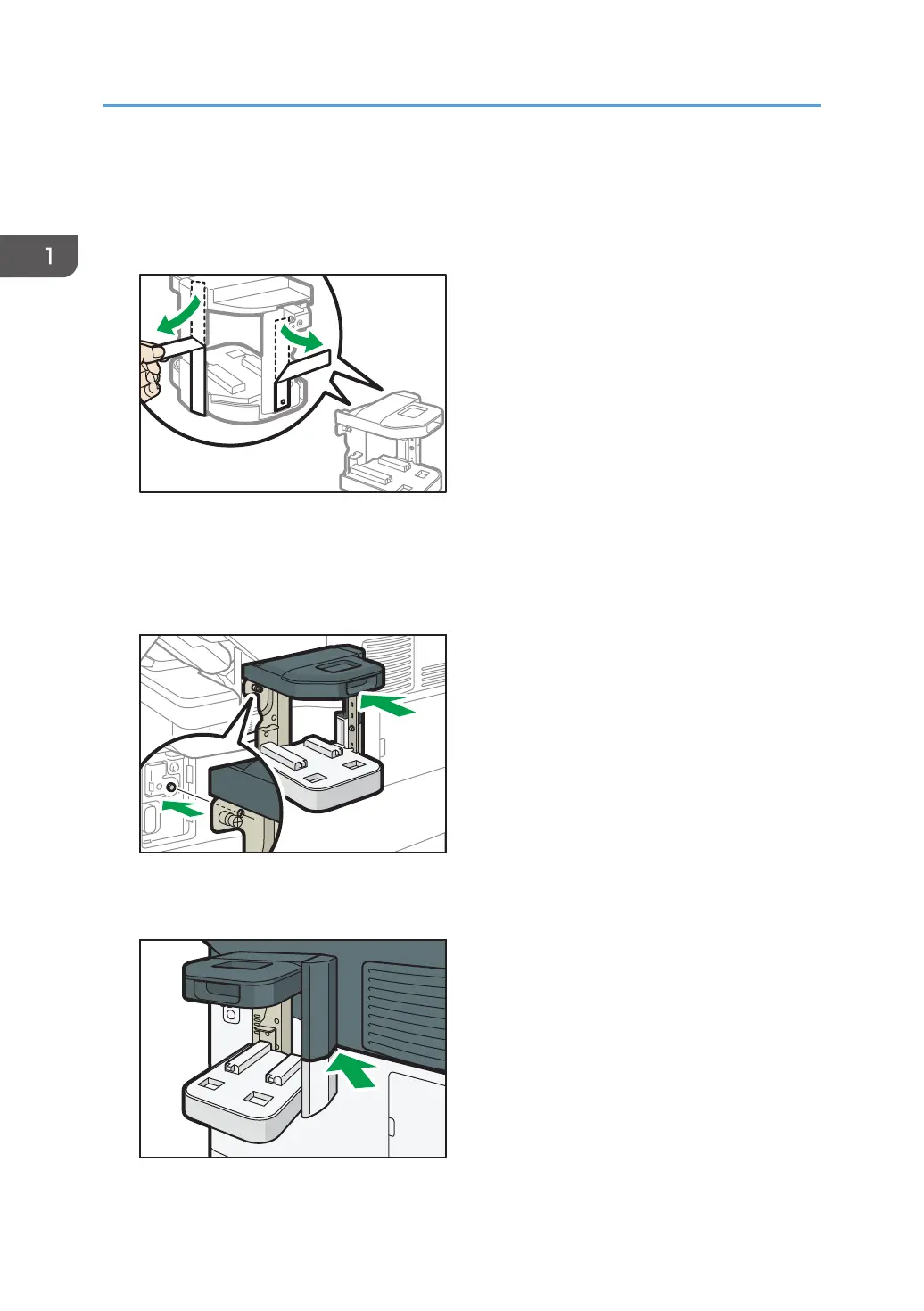

4. Fold outside the parts of the release paper that are not stuck to the double-sided tapes on
the back of the staple unit cradle.
The adhesion of the release paper is strong, so it cannot be detached once it is affixed. Do not affix
the release paper until Step 7.
DVL431
5. Align the hole on the staple unit cradle to the bump that is on the right side of the
machine, and then insert the screw into the screw hole.
If the right side of the machine is dirty, clean the surface before mounting the staple unit cradle on
the machine.
DVL432
6. Align the lines of both the machine and the staple unit cradle as shown in the illustration,
and then turn the screw until it stops.
