Initializing Settings

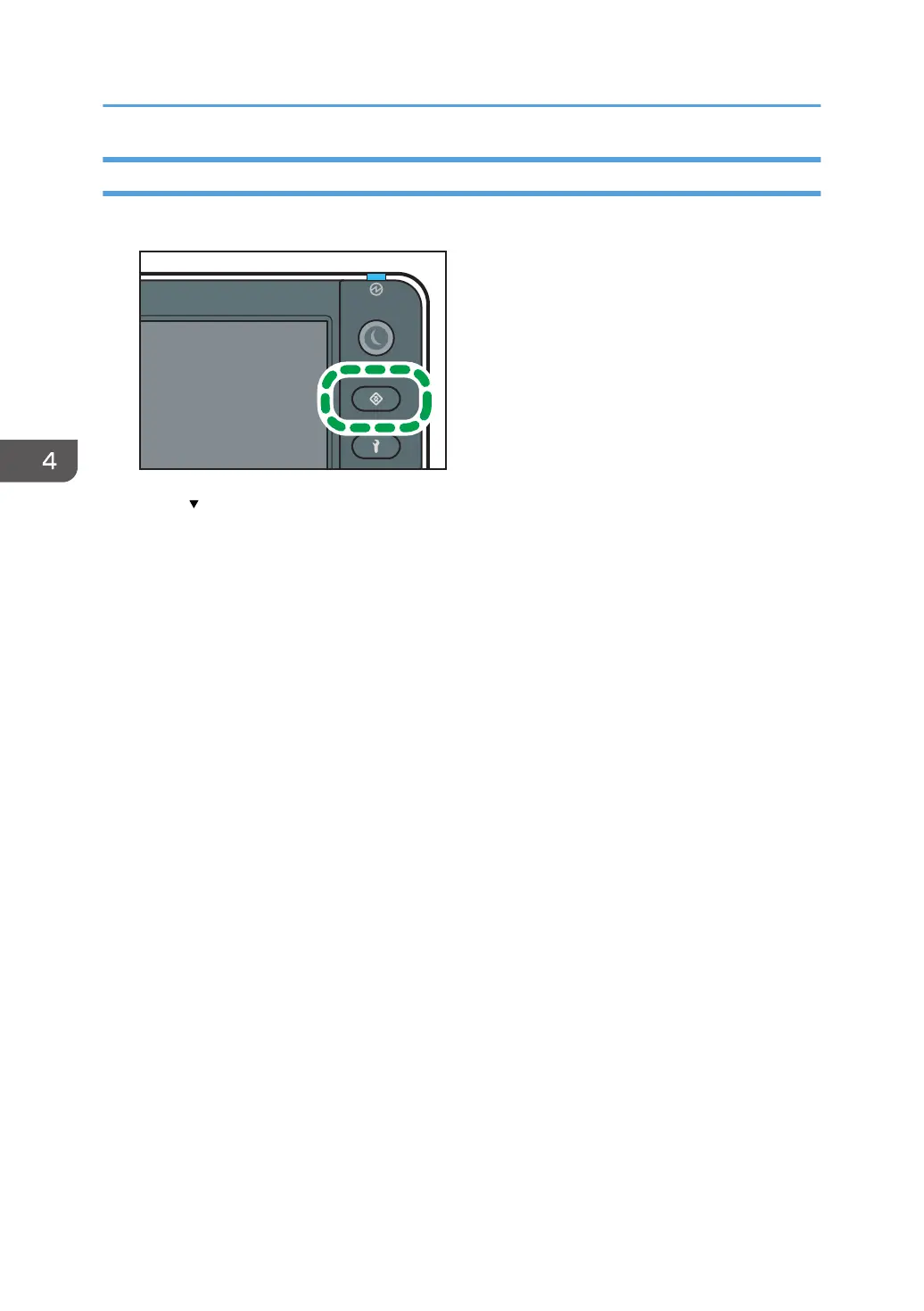

1. Press the [User Tools] key.

DWU101

2. Press [ ].

3. Press [Reset].

4. Press [Execute].

5. Press [Confirm].

The set values are returned to the factory-set values.

6. Press [End].
