• If there are abnormalities, perform head cleaning. For details about head cleaning, see
page 89 "Cleaning Print Head Nozzles".
7. Press [End].
• It is not reflected in the result of the test print even when [Nozzle Recovery] is set to [On]. When
checking the print result in which the clogged nozzle is recovered, print a recovery check pattern
by using the RIP software. For details, see "Functions on the Main Menu", RIP Settings Guide.

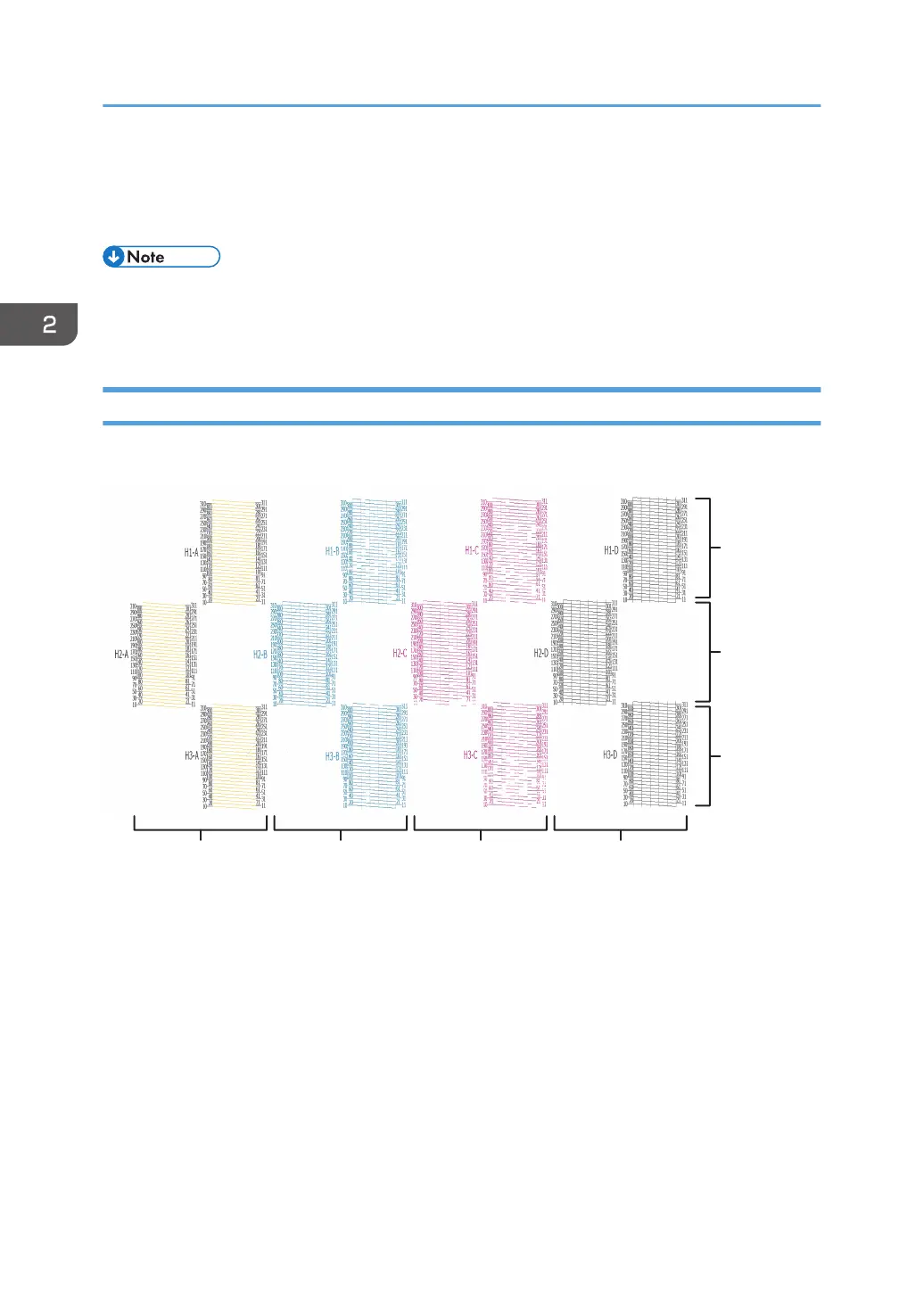

How to Read the Printing Result
How to read the test printing result is explained below.
DWT171
4567
1
2
3
1. Print head 1
2. Print head 2
3. Print head 3
4. Nozzle D column
5. Nozzle C column
6. Nozzle B column
7. Nozzle A column
Check the position of the print heads where discharge defects such as clogging nozzles in the nozzle
check pattern have occurred. Check the print heads with discharge defects by referring to the following
illustration.
