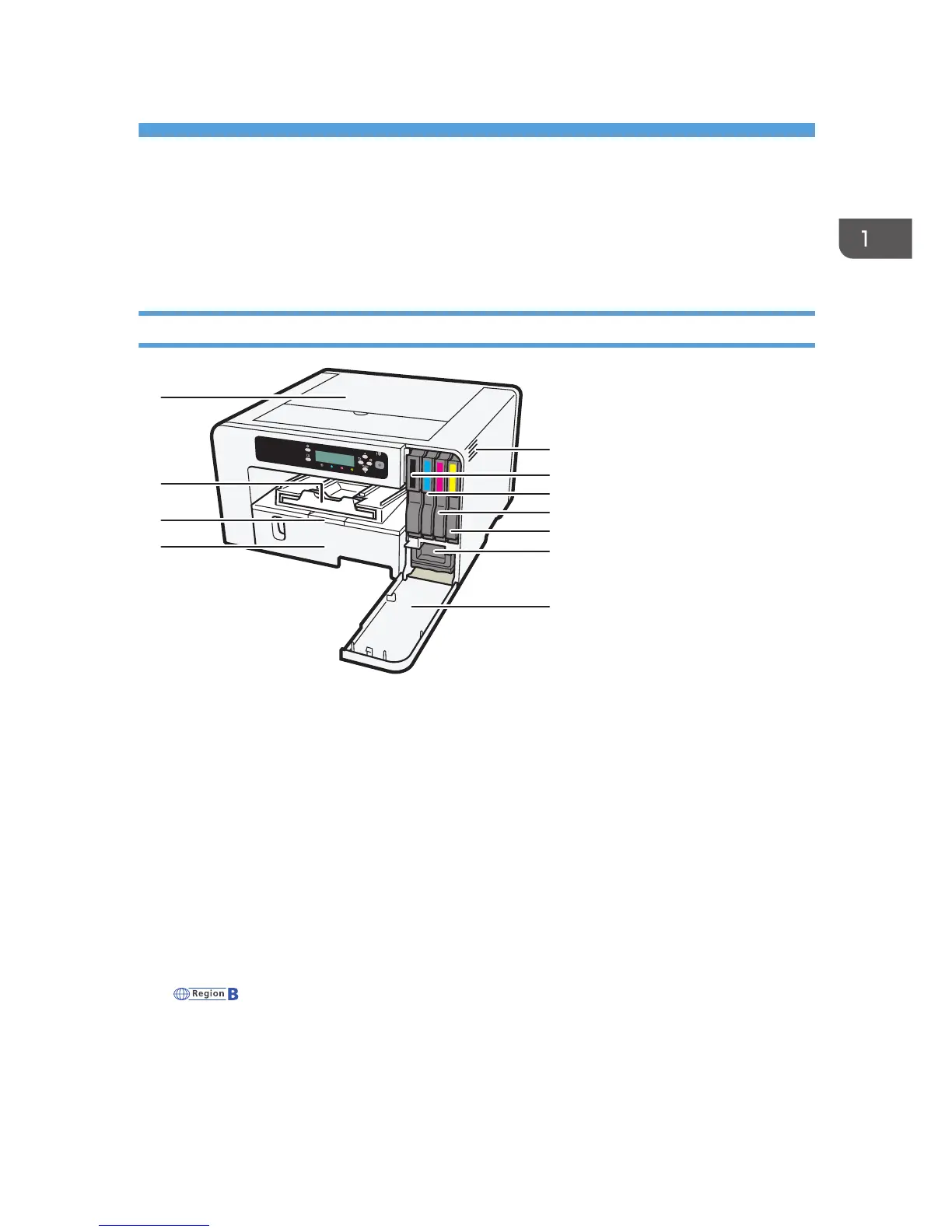

1. Top Cover
Normally, keep this cover closed. If you cannot locate paper jams, or jammed paper cannot be removed
easily, you can check the condition of paper from the top of the machine.
2. Output Ramp
Prints are delivered on the output ramp.
Pull out when using large paper to keep the printed paper from falling.
3. Paper Tray Cover Extension (SG 7100DN)
Pull out this cover when using the tray extension, so you can prevent the tray from being dusty.
Do not pull out this cover if you do not use the extension unit.
4. Tray 1
Load paper here.
(mainly North America)
If you want to print on paper larger than A4 or letter size, pull the tray extension out.
5. Vent
Air is vented here to prevent the inside of the machine from getting too warm. Do not lean anything against the
vent or block it in any way. If the inside of the machine gets too warm, a breakdown could occur.
