CFT066

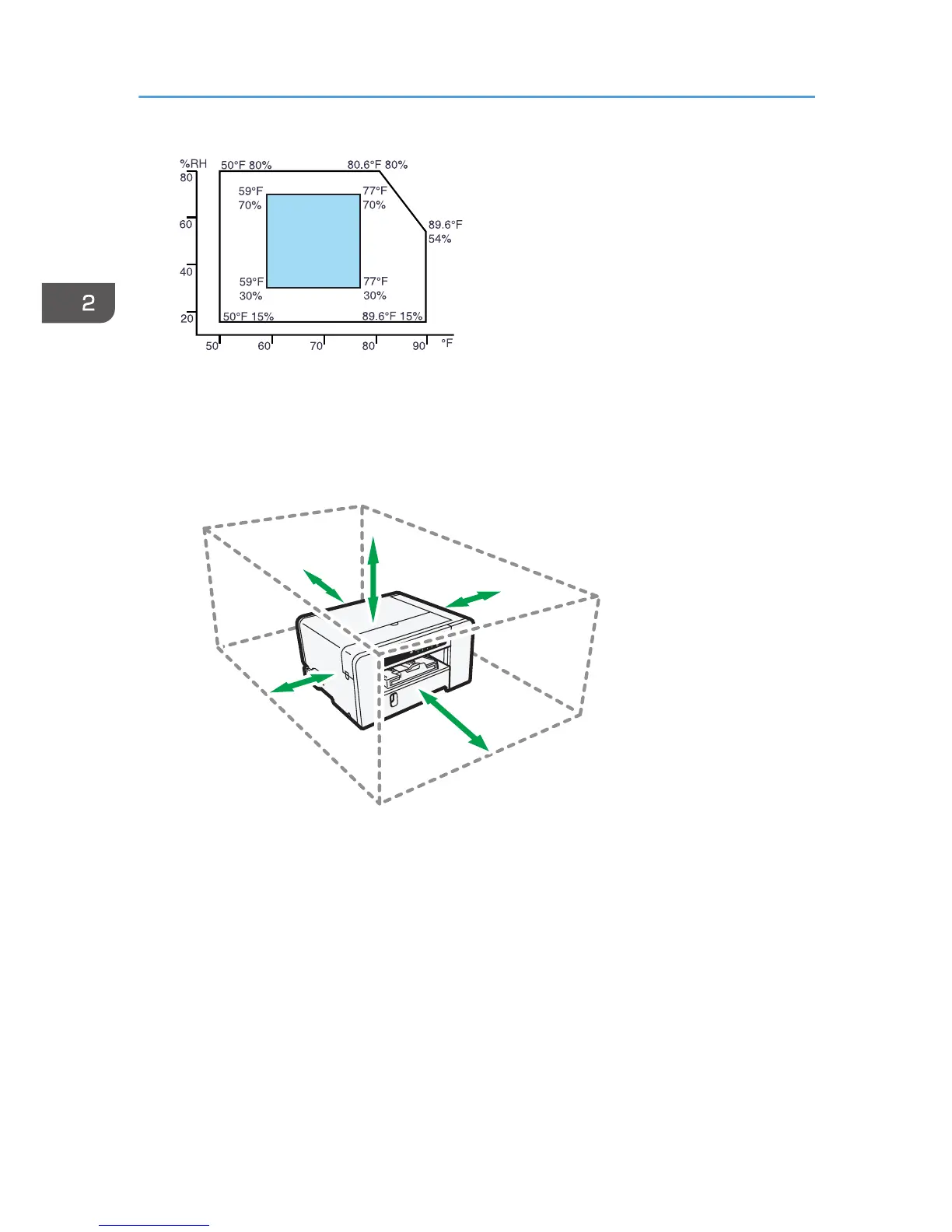

• White area: Permissible Range
• Blue area: Recommended Range
• The diagram below shows the ideal clearance for loading paper, replacing print cartridges, and
removing jammed paper
a*
c
d
e*
b
CTW062
SG 2100N/SG 3110DN/SG 3110DNw
a. 26 cm (10.3 inches)
b. 10 cm (4.0 inches)
c. 45 cm (17.8 inches)
d. 3 cm (1.2 inches)
e. 13 cm (5.2 inches)
*
A clearance of 30 cm (11.9 inches) is necessary if the multi bypass tray is attached.
SG 7100DN
a. 26 cm (10.3 inches)
*
A clearance of 41 cm (16.2 inches) is necessary if the multi bypass tray is attached.
2. Preparing for Printing
38
