Ricoh SR3290 - Page 25

1.Detailed Descriptions
19

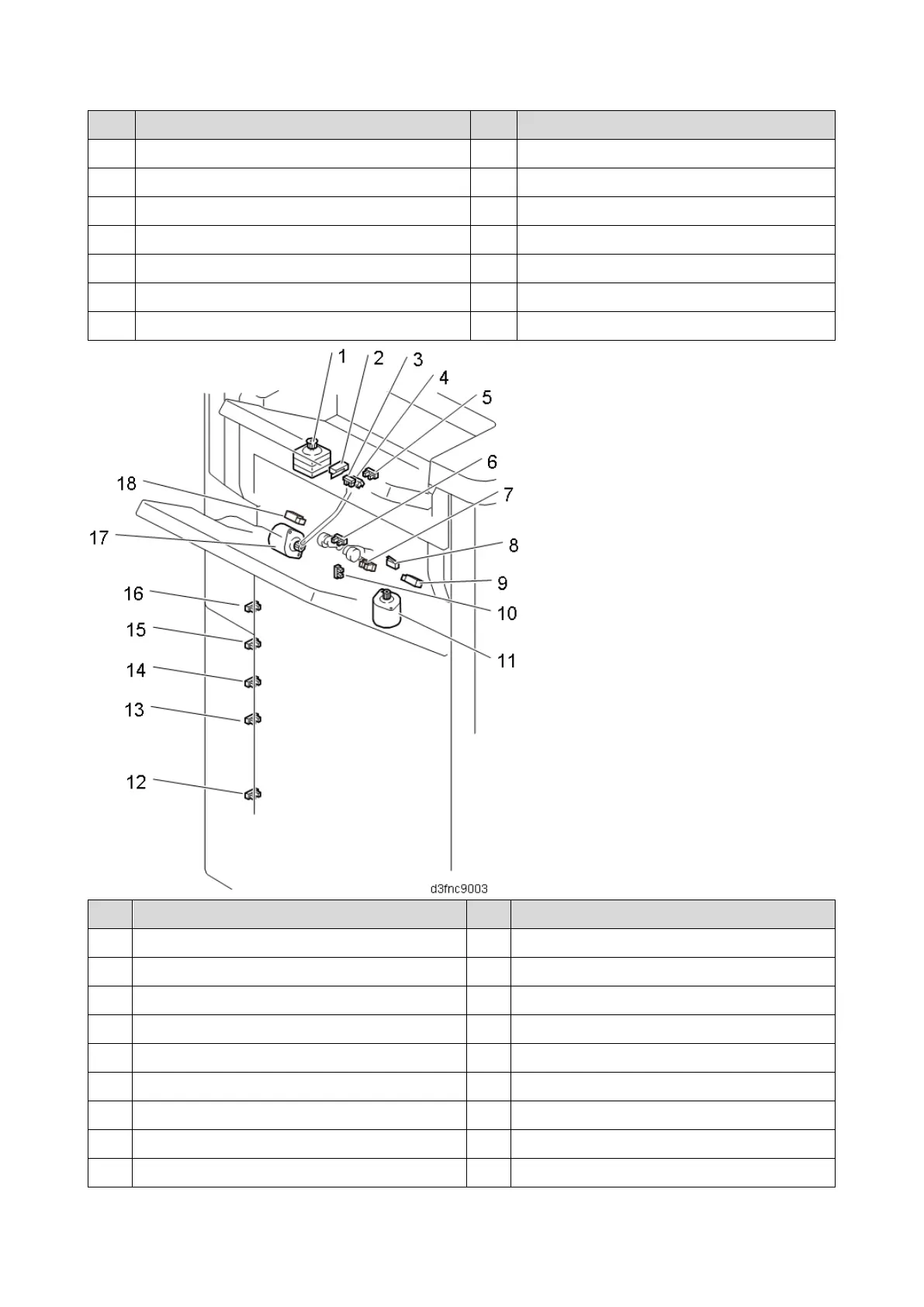

No.
Part
No.
Part
1
Jogger Fence HP Sensor (S25)
8
Stapler Move HP Sensor (S23)
2
Jogger Motor (STM1)
9
Leading Edge Guide Motor (STM6)
3
Corner Stapler Movement Motor (STM7)
10
Leading Edge Guide HP Sensor (S33)
4
Feed-out Belt Motor (DCM7)
11
Positioning Roller HP Sensor (S28)
5
Staple Tray Paper Sensor (S31)
12
Positioning Roller Shift Motor (STM5)
6
Feed-out Belt HP Sensor (S12)
13
Shift Tray Exit Sensor (S22)
7
Corner Stapler Unit
-
-
No.
Part
No.
Part
1
Paper Exit Guide Plate Motor (STM4)
10
Stacking Sponge Roller HP Sensor (S32)
2
Paper Exit Guide Plate Limit Switch (SW2)
11
Paper Stacking Holder Motor (DCM6)
3
Booklet Stack Height Sensor 1 (S26)
12
Shift Tray Lower Limit Sensor 5 (S37)
4
Booklet Stack Height Sensor 2 (S27)
13
Shift Tray Lower Limit Sensor 4 (S36)
5
Exit Guide Plate HP Sensor (S34)
14
Shift Tray Lower Limit Sensor 3 (S30)
6
Paper Stacking Holder HP Sensor (S24)
15
Shift Tray Lower Limit Sensor 2 (S29)
7
Shift Tray Paper Height Sensor (S35)
16
Shift Tray Lower Limit Sensor 1 (S16)
8
Upper Tray Height Limit Switch (SW3)
17
Paper Stacking Holder Motor (DCM8)
9
Sub Height Sensor (Front) (S51)
18
Sub Height Sensor (Rear) (S52)
Booklet Finisher SR3290 Electrical Components
