Ricoh SR3290 - Page 26

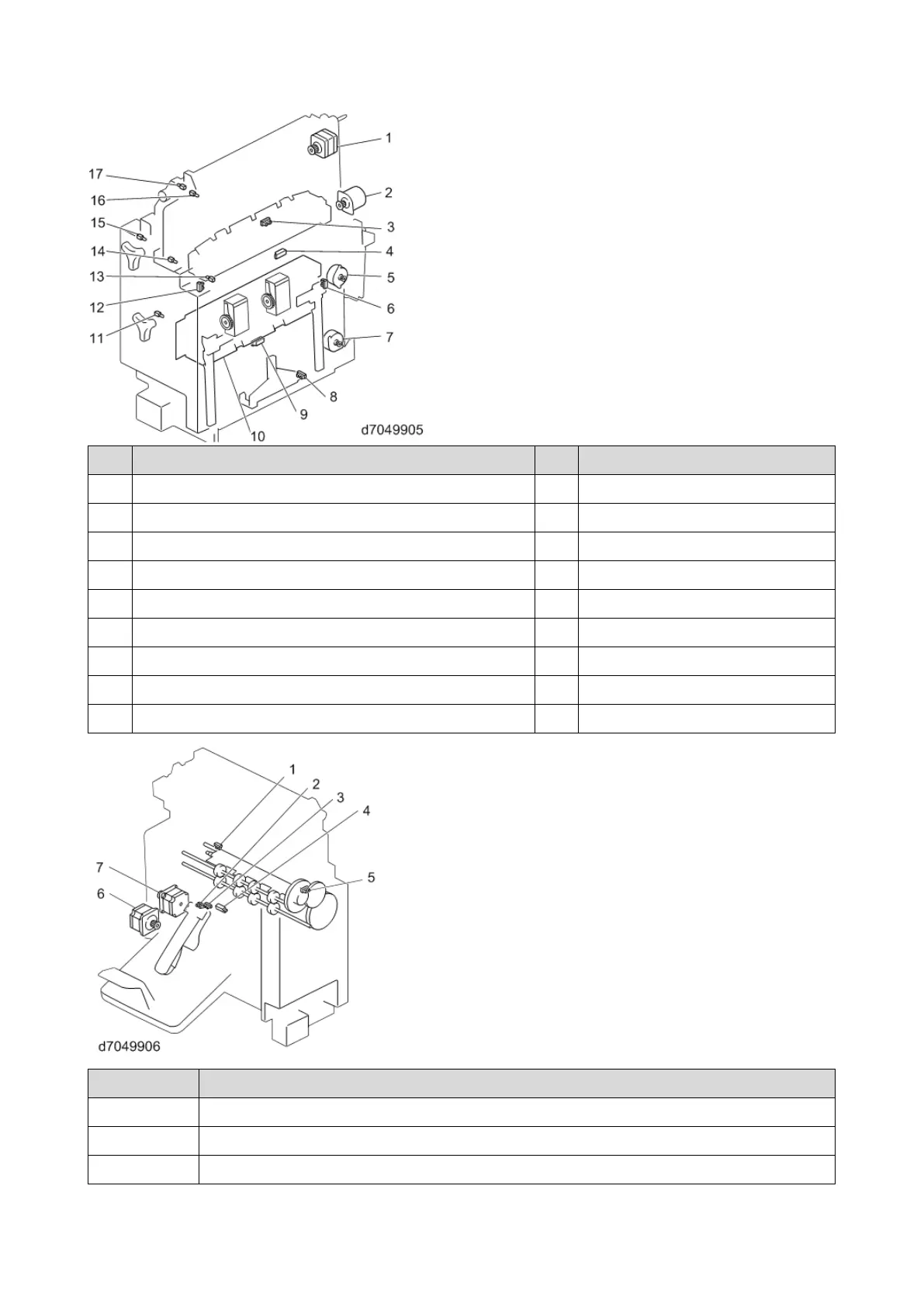

1.Detailed Descriptions
20
No.
Part
No.
Part
1
Booklet Jogging Pawl Movement Motor (STM8)
10
Booklet Stapler Unit
2
Shift Roller drive Motor (DCM11)
11
Booklet LED 1 (LED5)
3
Booklet Jogging Pawl HP Sensor (S3)
12
Booklet Guide Plate Sensor (S4)
4
Booklet Upper Transport Path Stack Sensor (S2)
13
Booklet LED 2 (LED6)
5
Booklet Jogger Motor (STM11)
14
Booklet LED 3 (LED7)
6
Booklet Jogging HP Sensor (S10)
15
Booklet LED 4 (LED8)
7
Booklet Bottom Fence Motor (STM12)
16
Booklet LED 5 (LED9)
8
Booklet Trailing Edge Bottom Fence HP Sensor (S5)
17
Booklet LED 6 (LED10)
9
Booklet Lower Transport Path Stack Sensor (S11)
-
-
No.
Part
1
Fold Plate HP Sensor (S1)
2
Booklet Tray Full Sensor 2 (S8)
3
Booklet Tray Full Sensor 1 (S7)
