1.Replacement and Adjustment
15

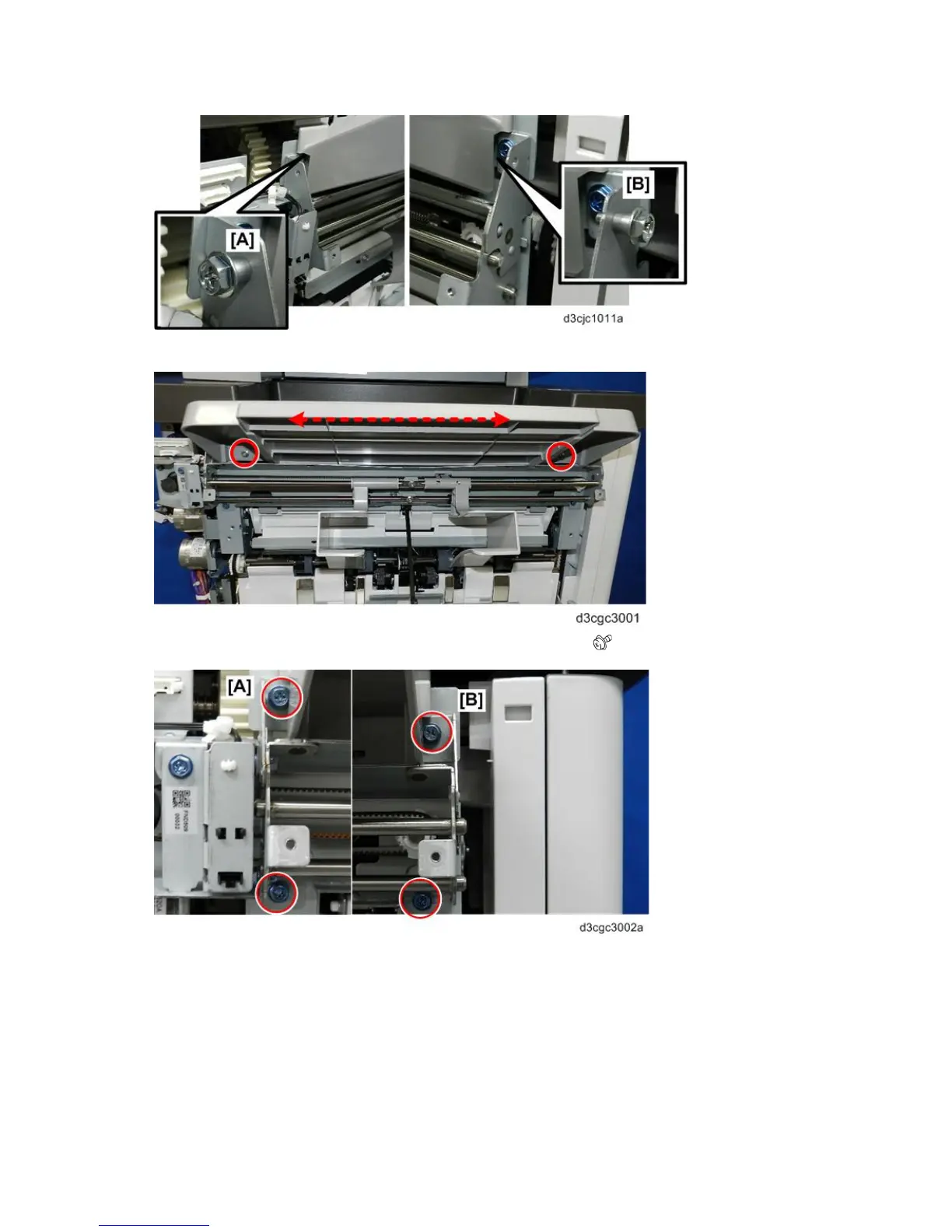

5. Loosen the proof tray screws temporarily to make it easier to reach the paper guide fastening screws.
6. Remove the paper guide fastening screws at the front [A] and rear [B] ( x4).
