2.Detailed Descriptions
66
No. Part No. Part
1 Jogger Fence HP Sensor 8 Stapler Move HP Sensor
2 Jogger Motor 9 Leading Edge Guide Motor
3 Corner Stapler Movement Motor 10 Leading Edge Guide HP Sensor
4 Feed-out Belt Motor 11 Positioning Roller HP Sensor
5 Staple Tray Paper Sensor 12 Positioning Roller Motor
6 Feed-out Belt HP Sensor 13 Shift Tray Exit Sensor
7 Corner Stapler Motor

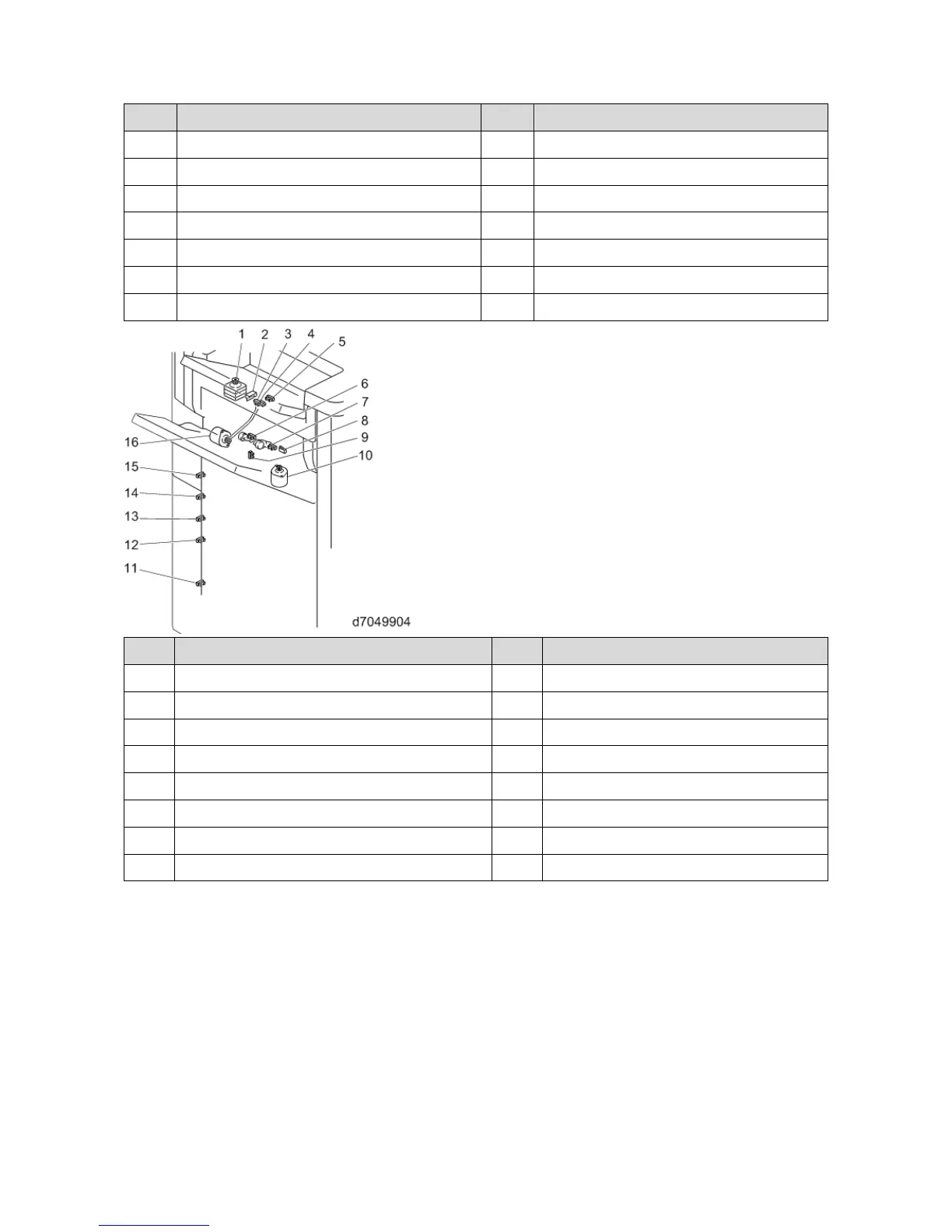

No. Part No. Part
1 Paper Exit Guide Plate Motor 9 Return Roller HP Sensor
2 Paper Exit Guide Plate Limit Switch 10 Return Roller Motor
3 Booklet Stack Height Sensor 1 11 Shift Tray Lower Limit Sensor 5
4 Booklet Stack Height Sensor 2 12 Shift Tray Lower Limit Sensor 4
5 Exit Guide Plate HP Sensor 13 Shift Tray Lower Limit Sensor 3
6 Trailing Edge Press HP Sensor 14 Shift Tray Lower Limit Sensor 2
7 Shift Paper Height Sensor 15 Shift Tray Lower Limit Sensor 1
8 Upper Tray Height Limit Switch 16 Trailing Edge Press Motor
Booklet Finisher SR4130 Electrical Components
