2.Detailed Descriptions
67

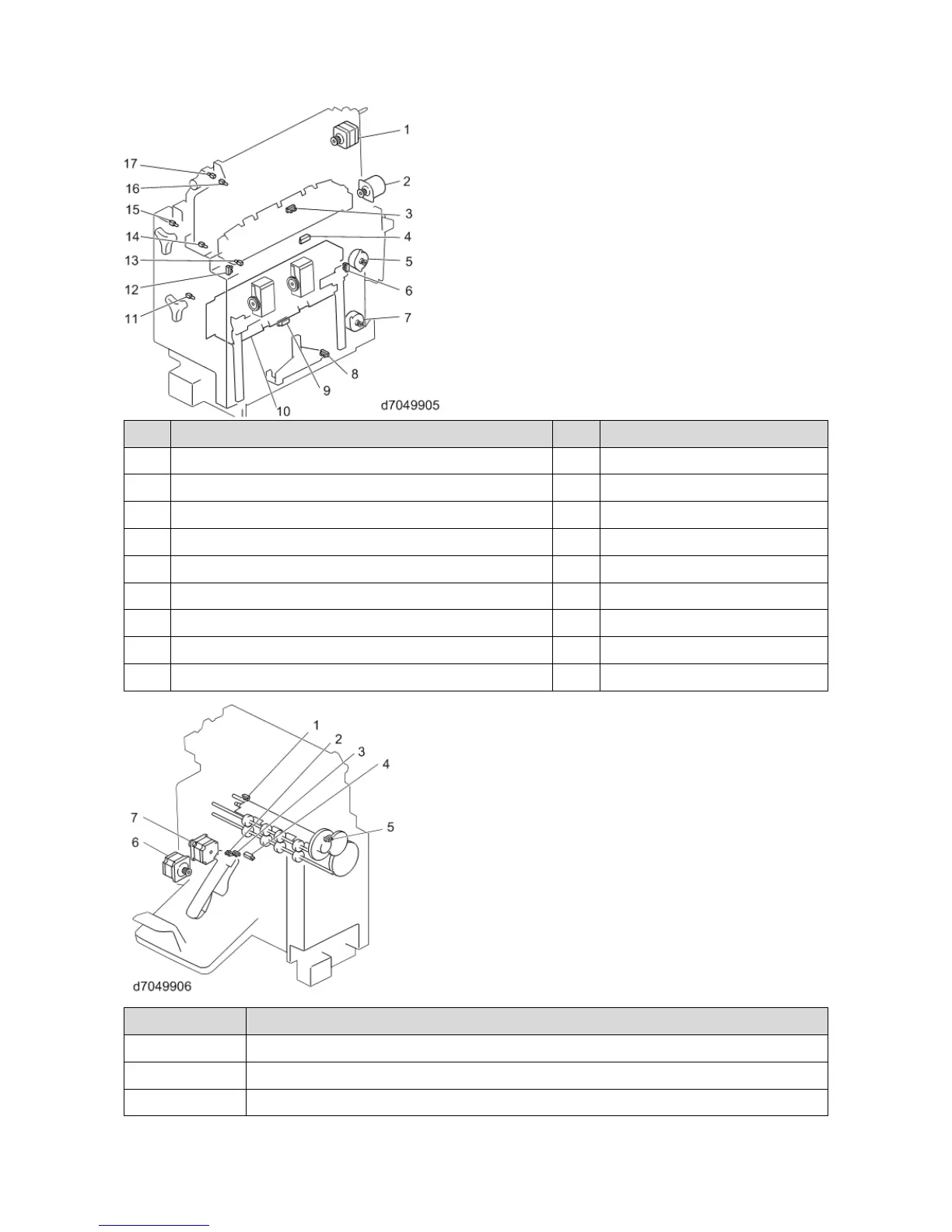

No. Part No. Part
1 Booklet Jogging Pawl Movement Motor 10 Booklet Stapler Motor
2 Dynamic Roller Transport Motor 11 Booklet LED 1
3 Booklet Jogging Pawl HP Sensor 12 Booklet Guide Plate Sensor
4 Booklet Upper Transport Path Stack Sensor 13 Booklet LED 2
5 Booklet Jogger Motor 14 Booklet LED 3
6 Booklet Jogging HP Sensor 15 Booklet LED 4
7 Booklet Bottom Fence Motor 16 Booklet LED 5
8 Booklet Trailing Edge Bottom Fence HP Sensor 17 Booklet LED 6
9 Booklet Lower Transport Path Stack Sensor
No. Part
1 Fold Plate HP Sensor
2 Booklet Tray Full Sensor 2
3 Booklet Tray Full Sensor 1
