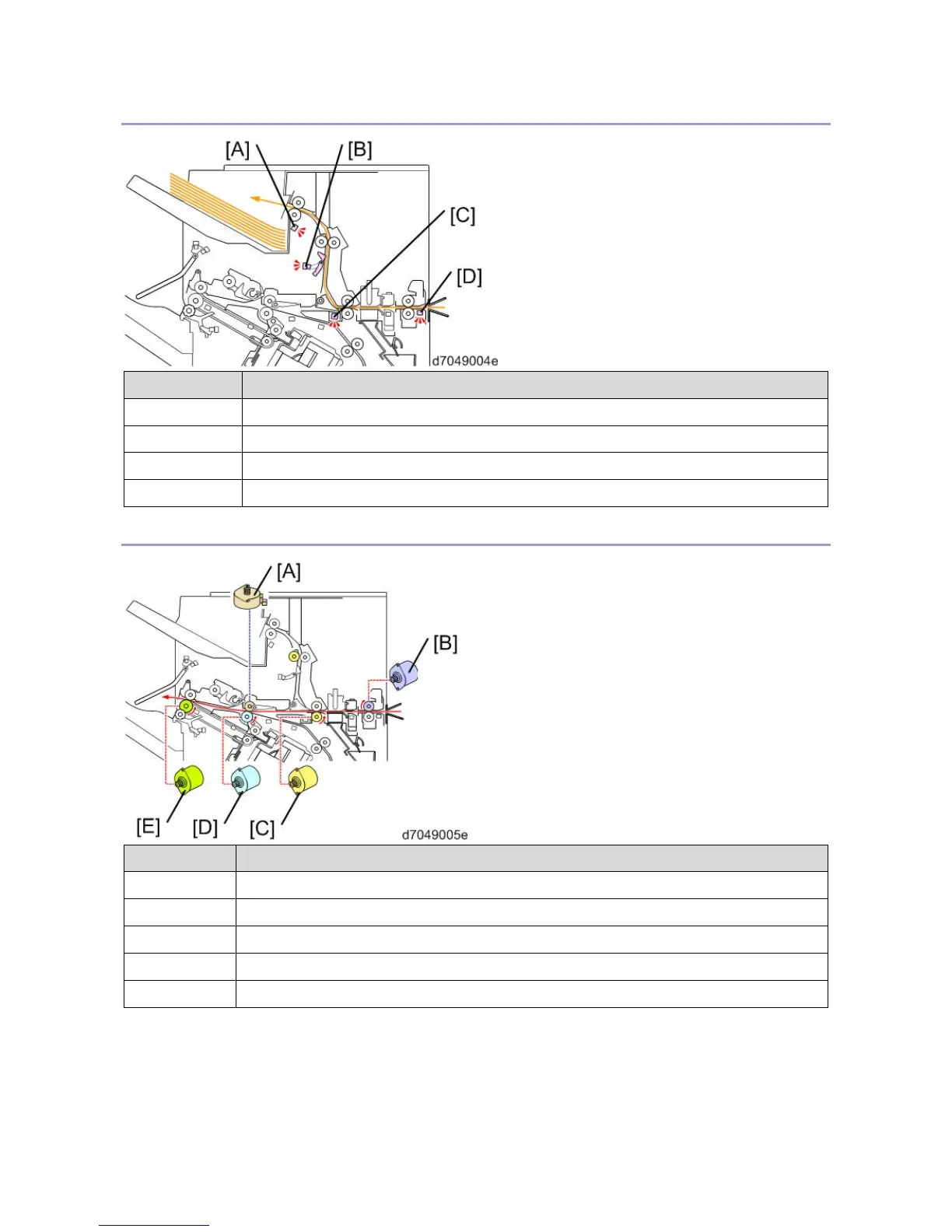

Proof Transport Layout (Sensor)
No. Name
A Proof Tray Full Sensor
B Proof Exit Sensor
C Horizontal Transport Sensor
D Entrance Sensor
Shift Transport Layout (Drive)
No. Name
A Shift Roller Motor (shift only)
B Entrance Transport Motor
C Horizontal Transport Motor
D Relay Transport Motor
E Upper Tray Exit Motor
