2.Detailed Descriptions
69

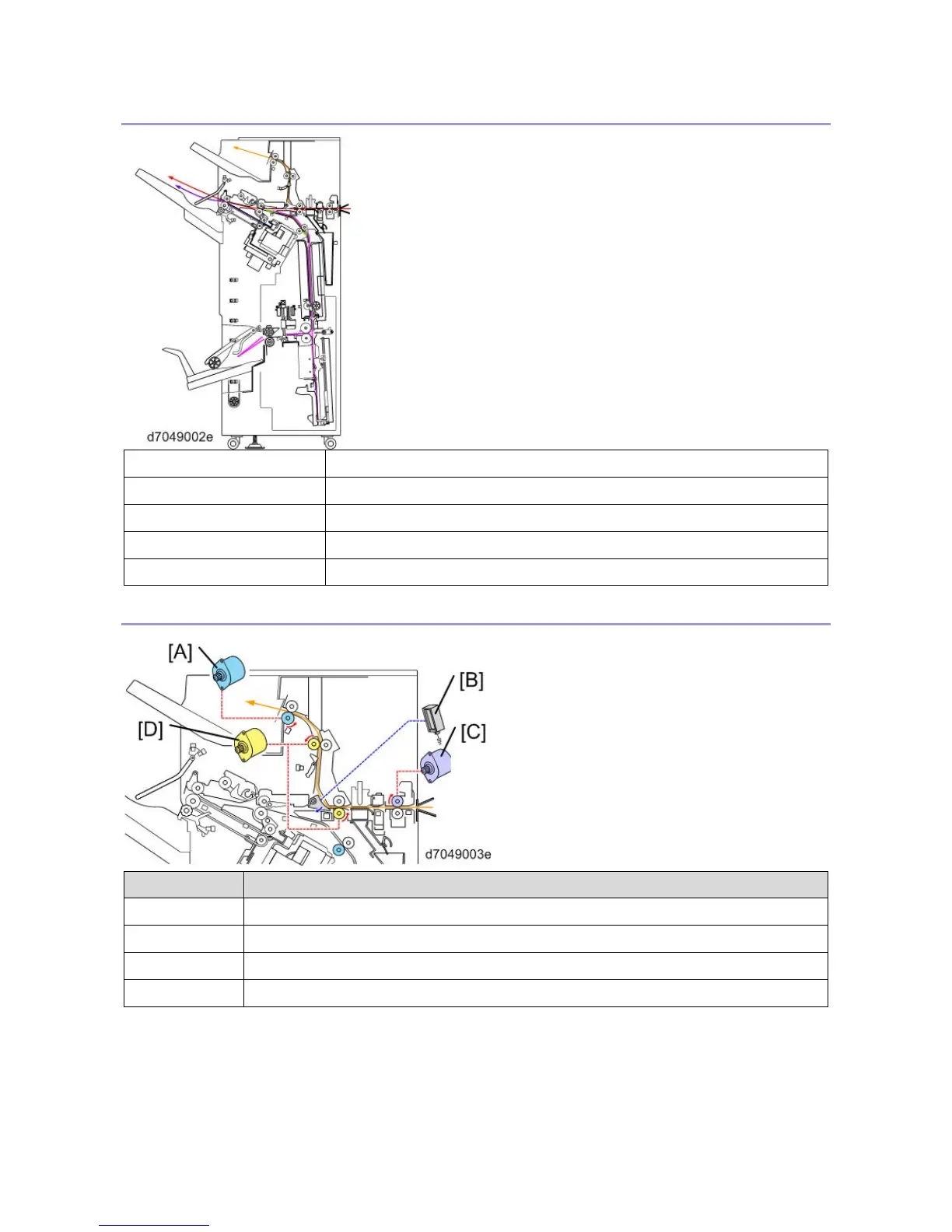

Transport Layout
Red Straight Through Path
Orange Proof Path
Green Pre-stack Path
Purple Corner Staple Path
Pink Booklet Staple Path
Proof Transport Layout (Drive)
No. Name
A Proof Exit Motor
B Junction Gate Solenoid
C Entrance Transport Motor
D Horizontal Transport Motor
