2.Detailed Descriptions
78

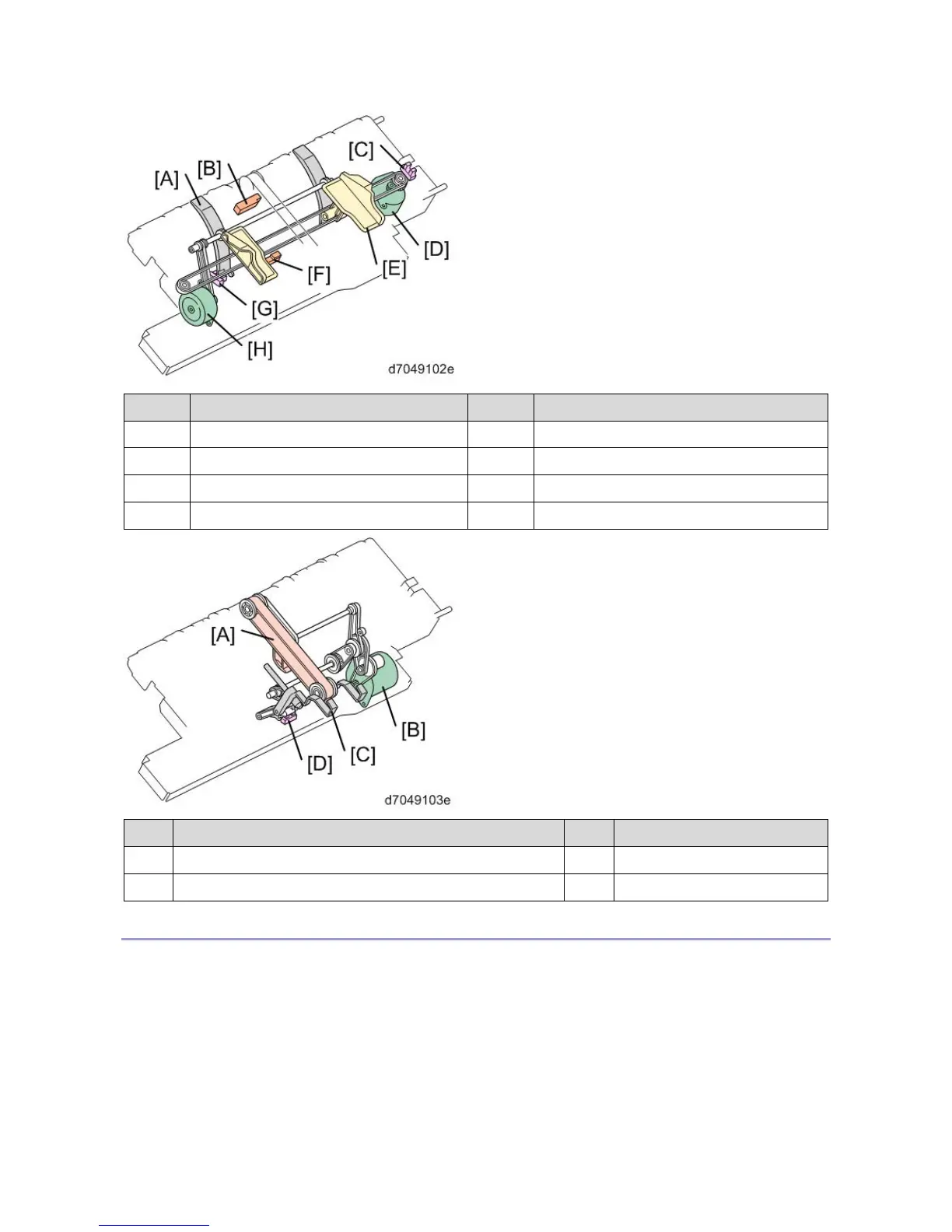

No. Name No. Name
A Edge Guide E Jogger Fence
B Upper Tray Exit Sensor F Staple Tray Paper Sensor
C Jogger HP Sensor G Edge Guide HP Sensor
D Jogger Motor H Edge Guide Motor
No. Name No. Name
A Stack Feed-out Belt (with stack feed-out pawl) C Bottom Pawl
B Stack Feed-out Motor D Stack Feed-out Pawl HP
Edge Guide
When the machine applies a corner staple to a paper stack, the other end of the stack is hanging out of the exit. At
this time, to prevent the paper stack from dropping to the upper tray, the edge guide [D] comes out of the unit. The
edge guide operates in the following way:
1. When a job starts, the upper tray guide plate [A] shifts up.
2. The edge guide motor [B] turns on to push the edge guide [D] out. The edge guide retreats to the machine
