Ridder RW800 - Technical Specifications

RW70/140-34:
3.5 Technical specicaons
Mechanical
RW series RW45 RW240–600 RW800 RW70/140
Torque [Nm]
60
90
120
240
400
600
800
70
140
Mains frequency [Hz] 50/60 50/60 50/60
Rotaonal speed
[revoluons per minute]
1/1.2*
2/2.4*
3/3.6
5/6.0
3/3.6
5/6.0
34/41
* Not applicable: - RW600 -
Limit-switch range
[revoluons of drive sha]
55
97
86 120 860
Drive unit Self-braking
Operate manually (externally):
With (electric) tools and a hexagon socket in the sha of the
electric motor.

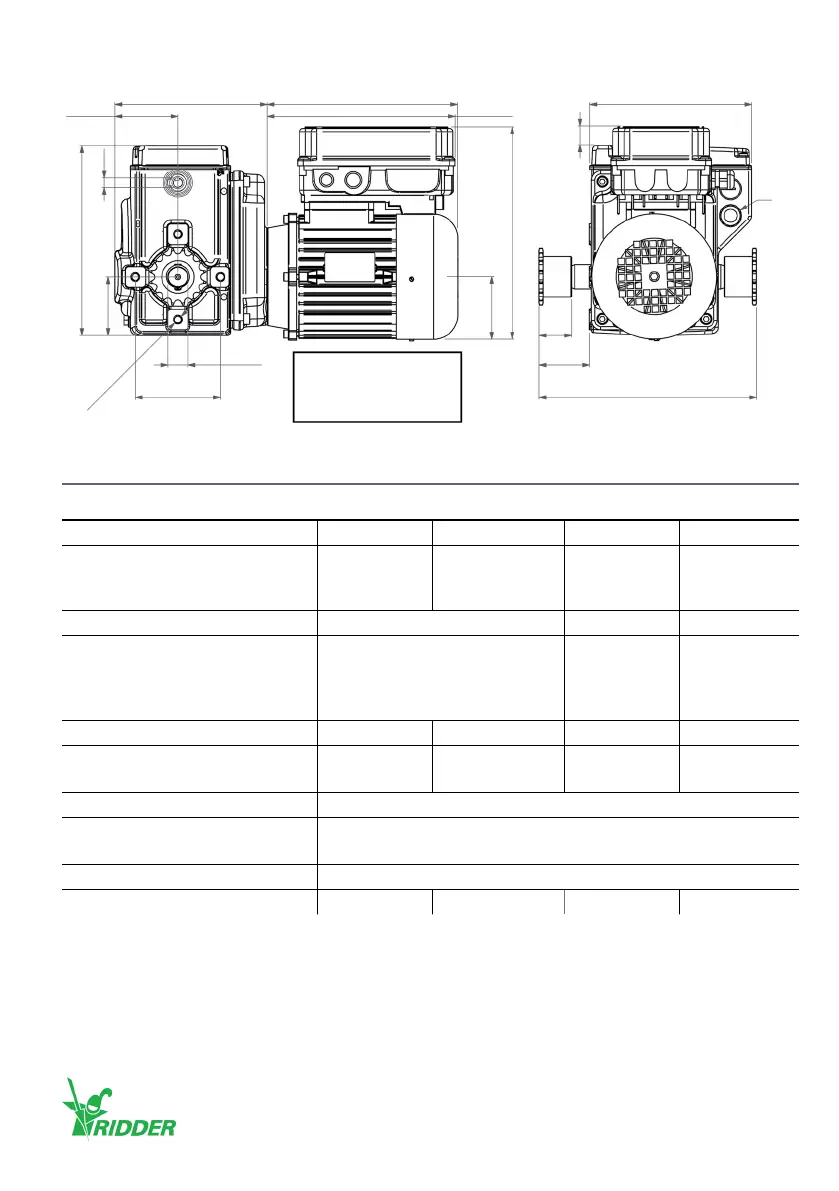

Dimensions [mm] WxHxD Refer to §3.4 (minimum–maximum).
Weight [kg]
15.5–16.5 28.5–42.8 45 31–37
M20
H1 = 75–80 mm
H2 = 225–262 mm
L1 = 215–235 mm
L2 = 215–230.5 mm
188.5
40
62
H2
77.5
234
L1
L2
200
H1
105
Ø25
268
M10x25
12
72
23
