Ridder RW800 - Direction-Of-Rotation RW Motor-Gearboxes

6.2 Direcon-of-rotaon RW motor-gearboxes

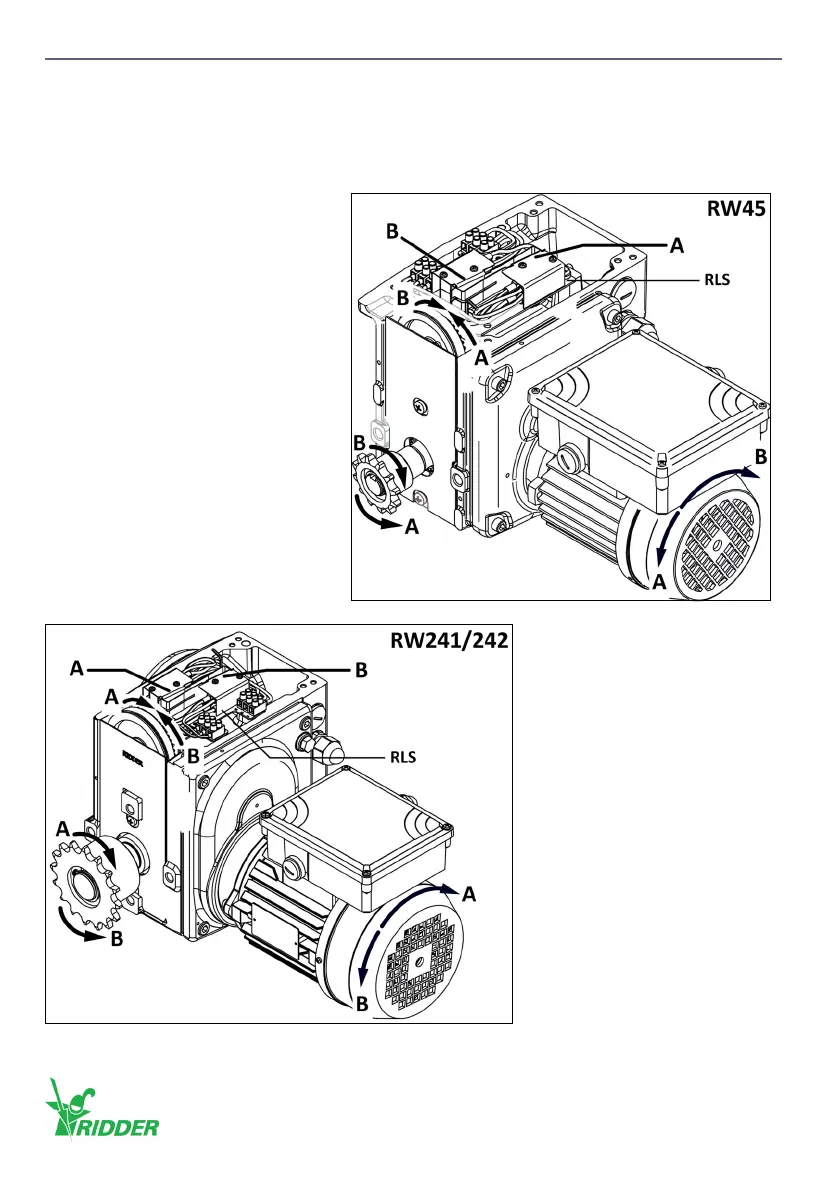

The illustraons that follow show the motor gearboxes with the related direcons-of-rotaon A and
B. The limit switches A and B of the RLS/RSU are also shown.
Direcon-of-rotaon A = Limit switch A = ES11/ES21 - Refer to §7.2
Direcon-of-rotaon B = Limit switch B = ES12/ES22 - Refer to §7.2
