7.2 RLS/RSU limit-switch system
The RLS/RSU limit-switch system is a linear switch-system. The output sha of the motor gearbox
operates the limit-switch system through a transmission. The number of revoluons of the output
sha can be set between the end posions.
RLS: RW45\RW241/242
The switching range is 55, 86 or 97 revoluons of the drive sha.
RSU: RW243/245/400/600\RW800\RW70/140
The switching range is 86, 120 or 860 revoluons of the drive sha.

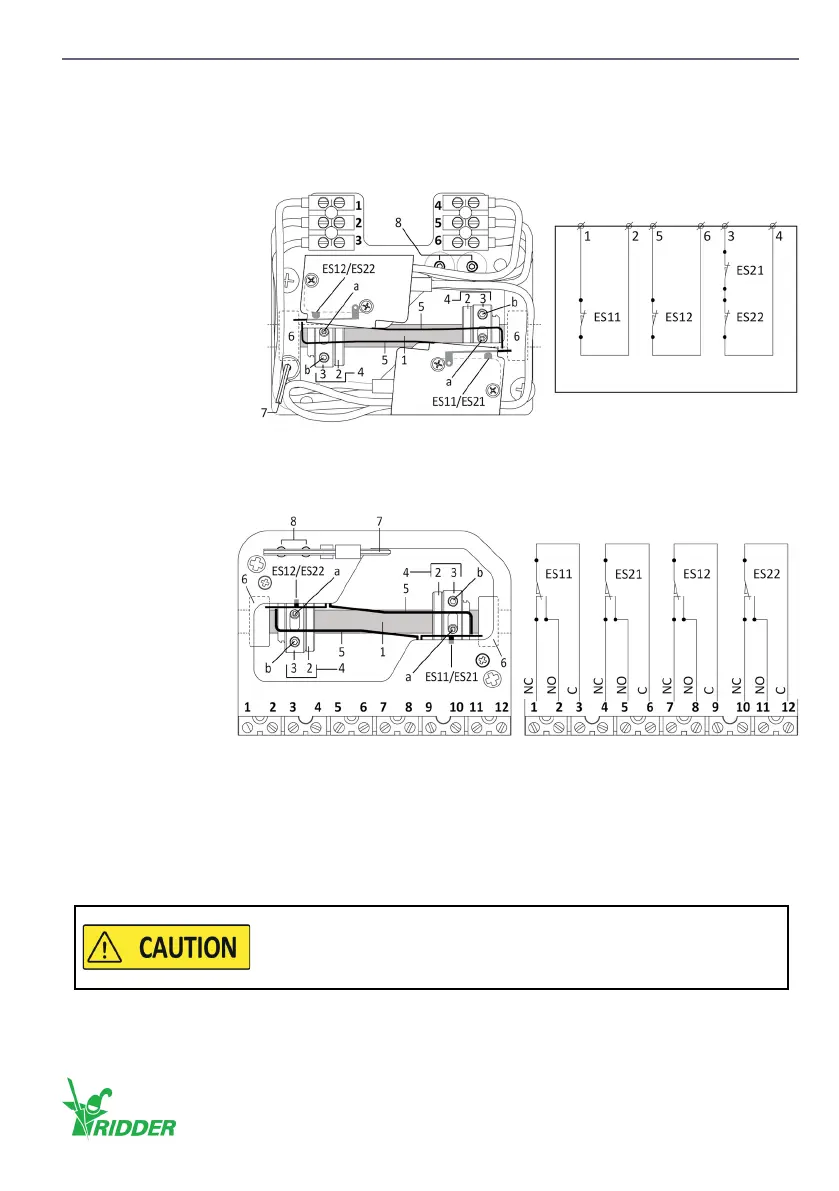

RLS/RSU
An RW motor-gearbox has a limit-switch system with connecon nuts (4). Ridder does not lock the
adjusng rings (3). The drive unit can turn freely (temporarily, unl the end posions are adjusted)
in the two direcons. This prevents damage to the limit-switch system (before it is electrical
connected) when the motor is manually operated or is operated with electric tools!
1. THREADED SHAFT
2. KNURLED NUT
3. ADJUSTING RING
4. CONNECTION NUT
5. SWITCHING SPRING
6. STOPPER
7. HEX WRENCH 2 MM
a. ADJUSTING SCREW
LENGTH: 16 MM
b. ADJUSTING SCREW
LENGTH: 6 MM
8. SPARE PARTS a, b
ES11/ES12
DUTY SWITCH
ES21/ES22
SAFETY SWITCH
Duty
switch
Safety
switches
Duty
switch
Duty
switch
Safety
switch
Duty
switch
Safety
switch
1. THREADED SHAFT
2. KNURLED NUT
3. ADJUSTING RING
4. CONNECTION NUT
5. SWITCHING SPRING
6. STOPPER
7. HEX WRENCH 2 MM
a. ADJUSTING SCREW
LENGTH: 16 MM
b. ADJUSTING SCREW
LENGTH: 6 MM
8. SPARE PARTS a, b
ES11/ES12
DUTY SWITCH
ES21/ES22
SAFETY SWITCH
Do not go across the limits of the system when the motor is operated
manually or is operated with electric tools (with the hexagon socket
in the electric-motor sha). This prevents damage or injury.
