4.7 Belt drum onto RW45\240/400L motor gearbox
Installation option J

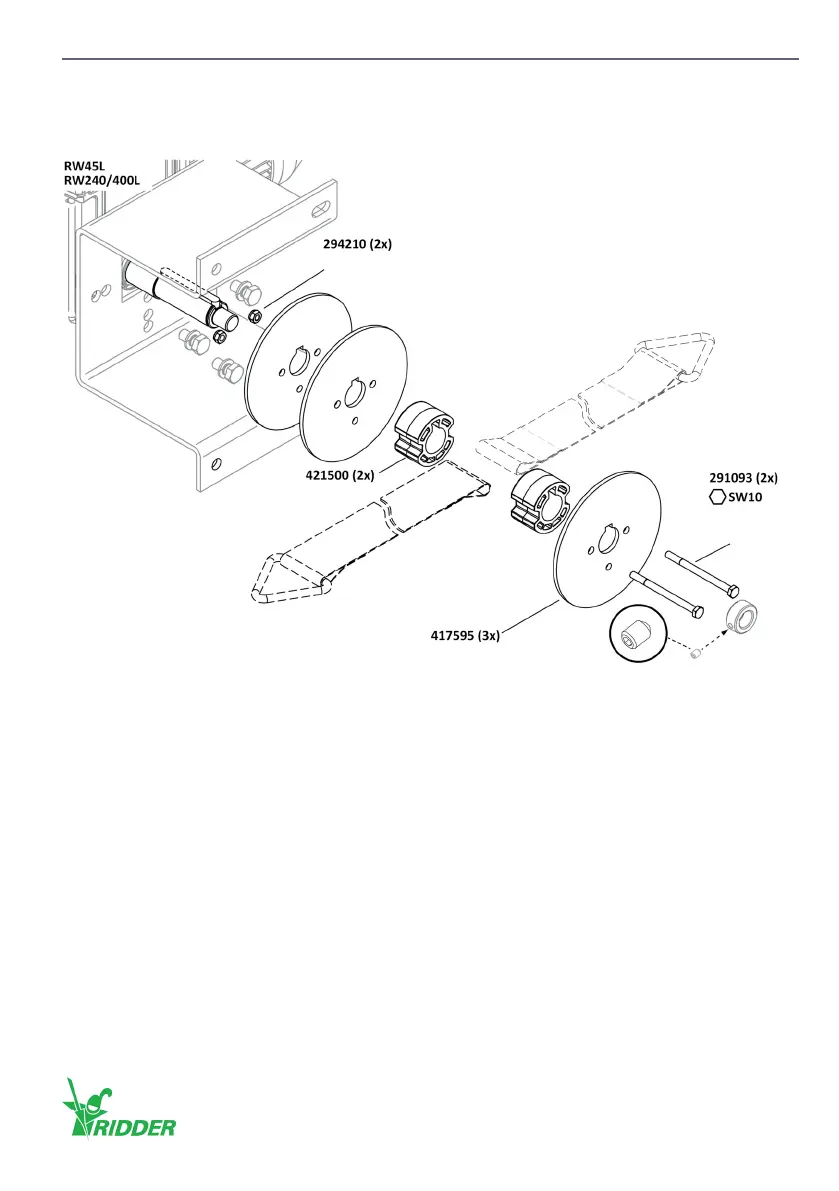

Install the drum and belt (one or two [with triangle for example]) onto the RW45L or RW240/400L
drive unit. Refer to the illustraon that follows.
In this manual shown illustraons can be dierent than the components and/or systems. For more
informaon on item numbers and models refer to the Ridder catalog or website at ridder.com.
M6
ø50 mm
M6 x 80 mm
M6 x 8 mmø130 mm
HEX 3 mm - 10 Nm
10 Nm
