Maintenance Section
13.1 Checking cooling water, CDA and vacuum
Open the lower panel on the left side of the Main Module.
Check the flow rate of cooling water, the pressure of the CDA and the suction pressure of vacuum
as the following figure.
Refer to the maintenance chapter for adjustments.
The flow rate meters for
the cooling water
(1.3 – 1.7 L/min.)
The regulators for the flow rate adjustment
of the cooling water
The digital meter for the
pressure of CDA
(0.48 – 0.52 MPa)
The regulator for the
CDA pressure adjustment
The digital meter for the
vacuum
(-78 – -80 kPa.)
The regulator for the
vacuum adjustment

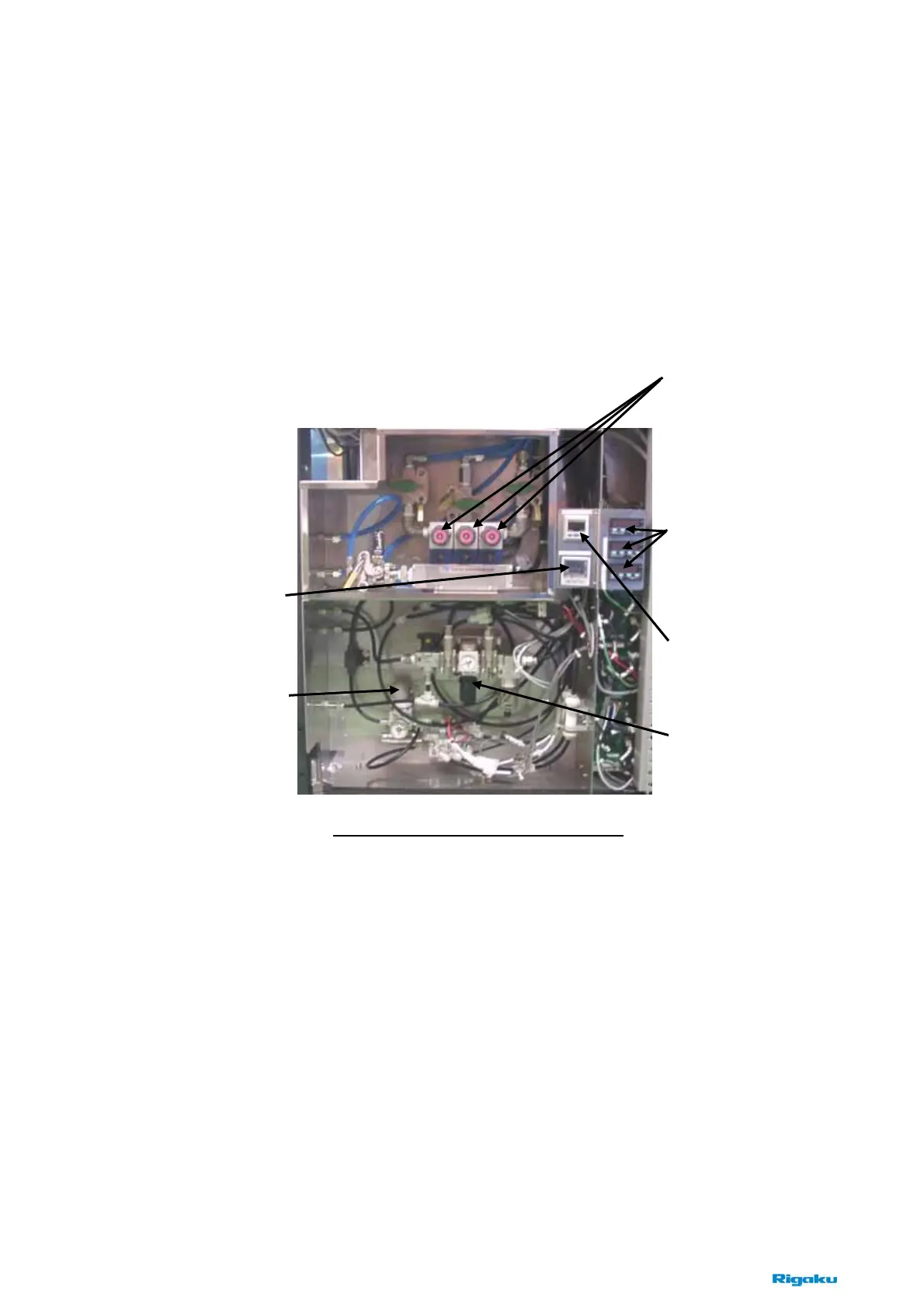

Fig. 13-1-1 The digital meters position
