Chapter 1 Quick Start RIGOL
User’s Guide for DP1116A
1-7
User Interface

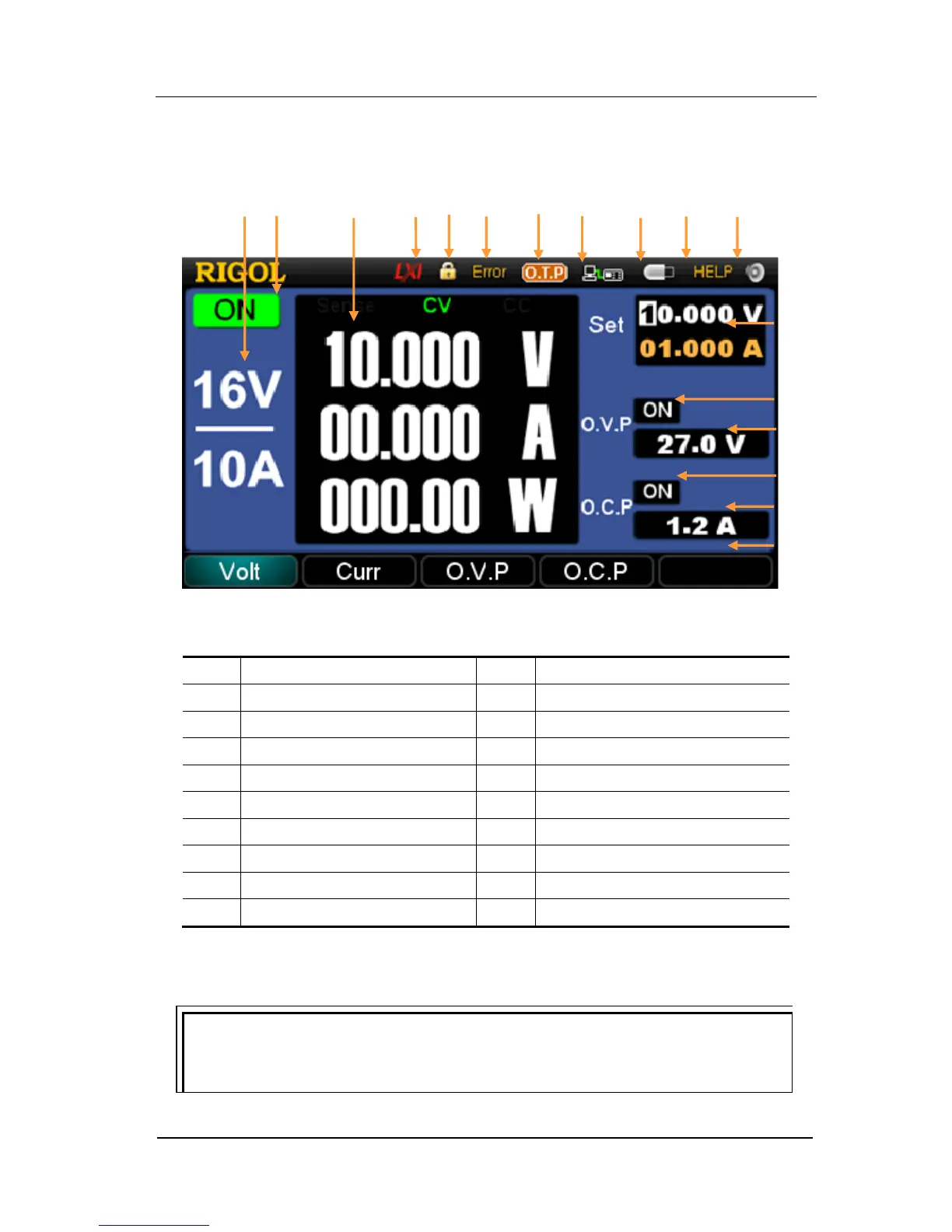

Figure 1-3 User interface of DP1116A
No.
Explanations.
No.
Explanations.
①
Active channel
⑩
Help system identifier
②
Channel status
⑪
Beeper identifier
③
Actual output *
⑫
Voltage/current input box
④
LAN connection identifier
⑬
O.V.P status setting box
⑤
Keylock
⑭
O.V.P input box
⑥
Self-test failed
⑮
O.C.P status setting box
⑦
O.T.P identifier
⑯
O.C.P input box
⑧
Remote control identifier
⑰
Operation menu
⑨
USB device identifier
*Remark: This area displays the actual output values of voltage, current and power as well as
the identifier of “Sense”, “CC” (constant current) or “CV” (constant voltage).
NOTE
The DP1116A has three display modes and each mode has its own interface,
for more details please refer to “Display Mode”.
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪
⑫
⑬
⑭
⑮
⑯
⑰
