RIGOL Chapter 1 Quick Start
User’s Guide for DP1116A
1-6
Rear Panel

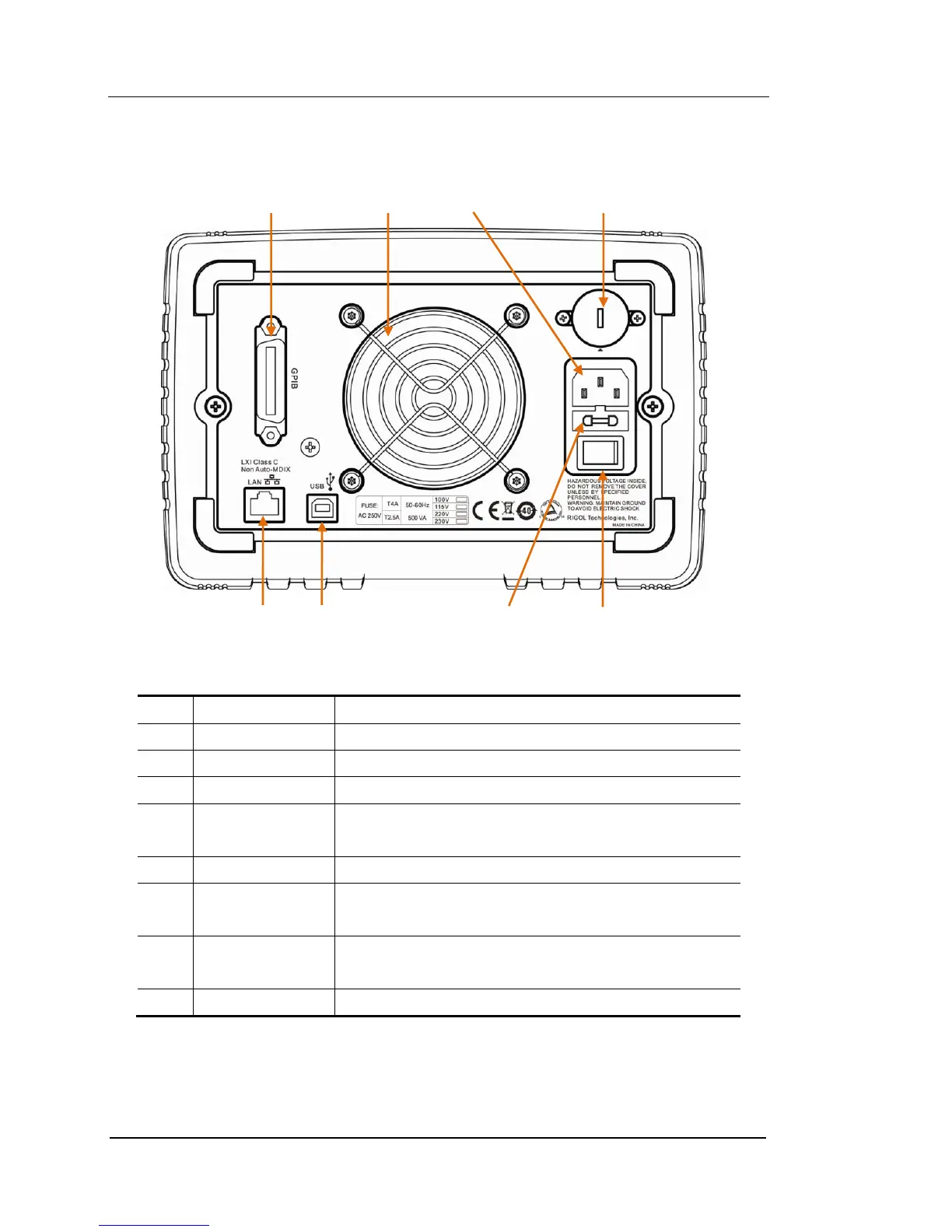

Figure 1-2 Rear panel overview
No.
Name
Explanations
①
GPIB port
Conform to the IEEE 488.2 protocol.
②
Fan
Air outlet.
③
Supply hub
AC power inlet.
④
Power voltage
selector
Select a proper scale according to the input
voltage manually.
⑤
LAN port
Access to LAN through a RJ45 interface.
⑥
USB device port
Connect as a “slave device” with an external USB
device.
⑦
Fuse
Provided with two types of specifications: 250 V,
T4 A and 250 V, T2.5 A.
⑧
Power switch
Power on or cut off the power supply.
① ② ③ ④
⑤ ⑥ ⑦ ⑧
