Display Mode
The DP1116A is designed with three display modes: General Display Mode,
Waveform Display Mode and Classic Display Mode. The first two modes have
their own colors (16V/10A: blue; 32V/5A: red). Users can choose an optimal
display mode as required.
1. General Display Mode
This is the default display mode after you start the instrument. See figure below,
the mode displays the setting values of the voltage, current and power in digital
form. In this mode, you can set the values of O.V.P and O.C.P.

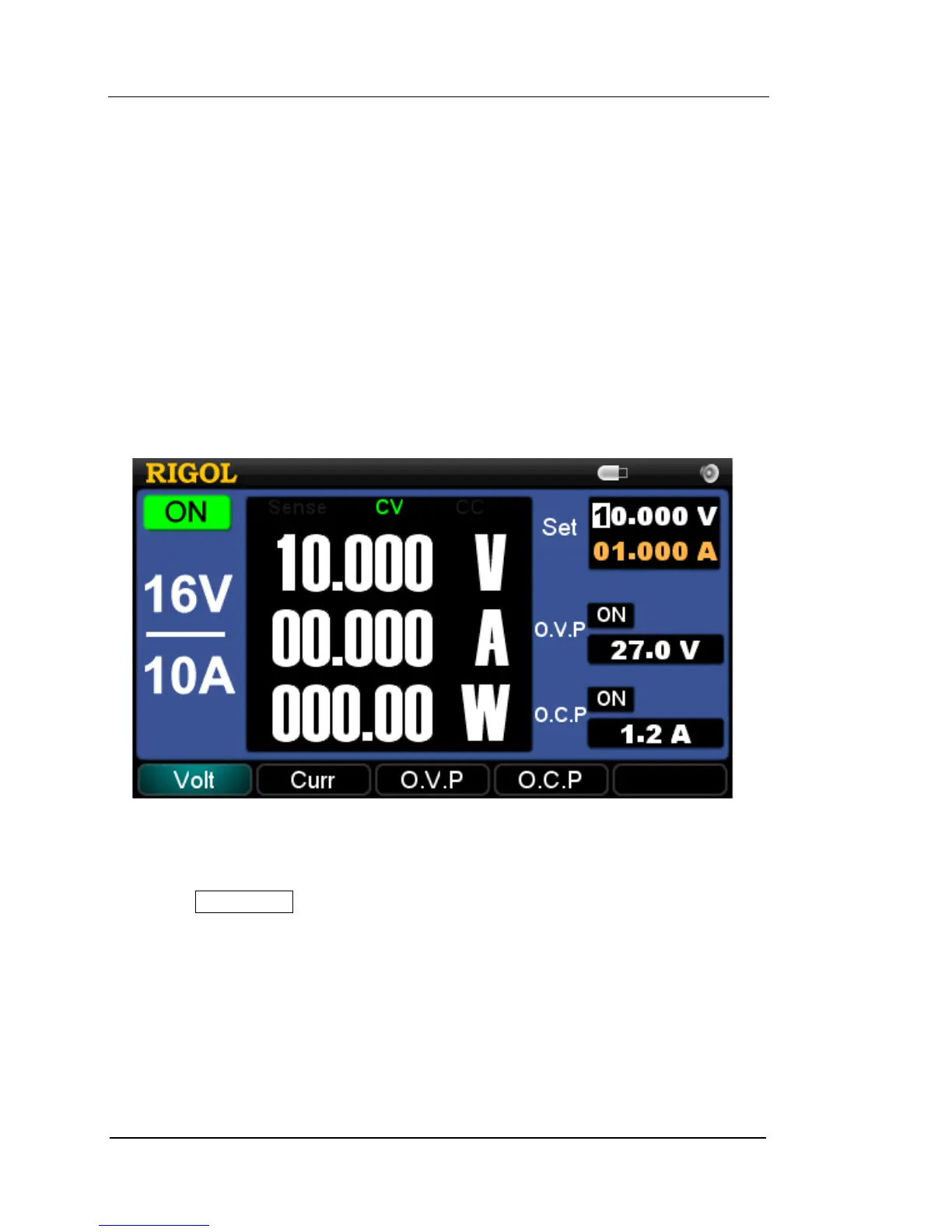

Figure 1-5 General display mode
2. Waveform Display Mode
Press Wave Disp to enter the waveform display mode. In this mode, the
voltage, current and power are shown in two forms of digits and waves so that
users can catch the output status of the instrument easily. Beside, you can set
the values of O.V.P and O.C.P as required.
