Chapter 2 Front Panel Reference RIGOL
User’s Guide for DP1116A
2-15

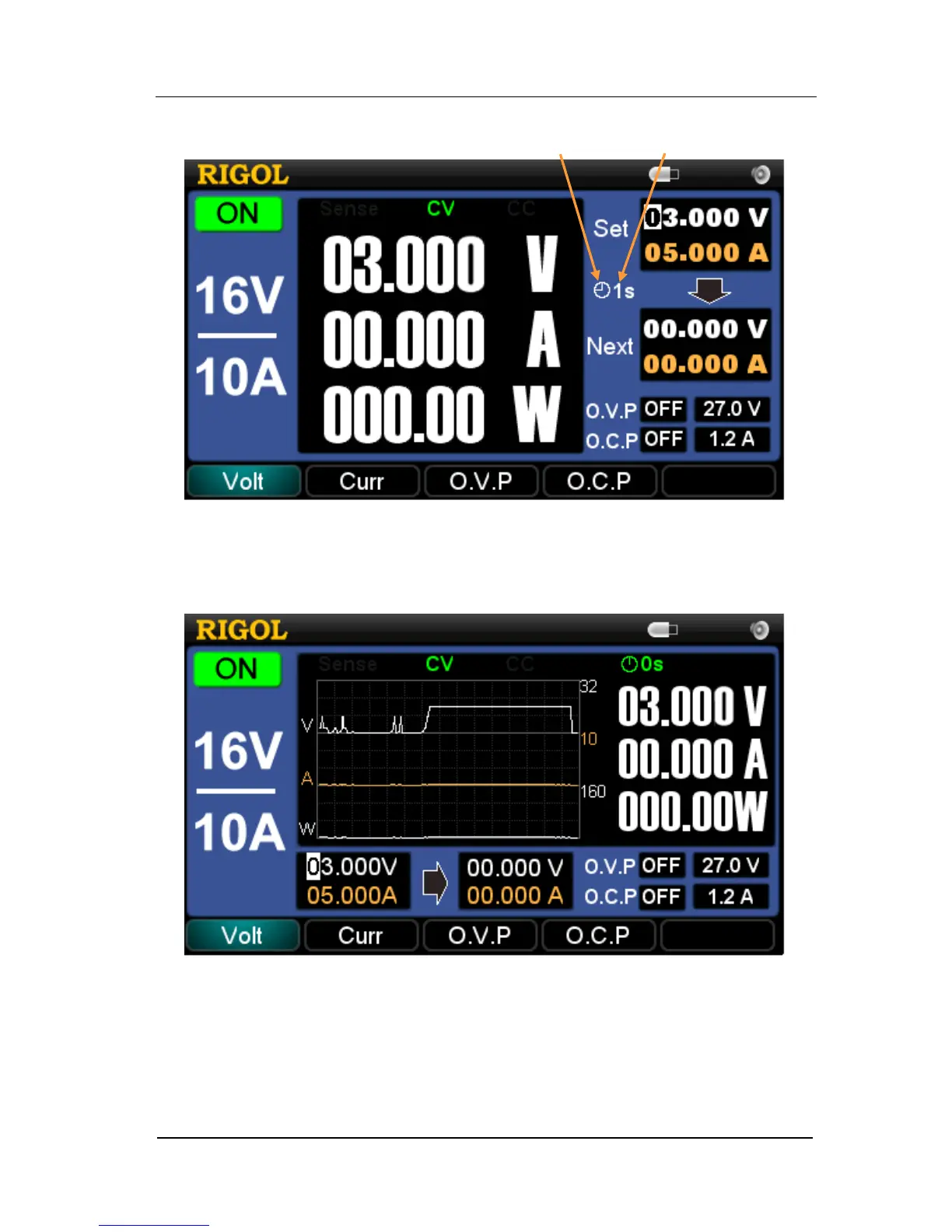

Figure 2-9 Timing output (in General display mode)
See figure below, in Waveform display mode, the timing output can be seen from a
waveform.
Figure 2-10 Timing output (in Waveform display mode)
See figure below, in Classic display mode, we can directly observe the switching
process of the timing output parameters.
Clock icon Specified time
