Chapter 3 Remote Control RIGOL
User’s Guide for DP1116A
3-11

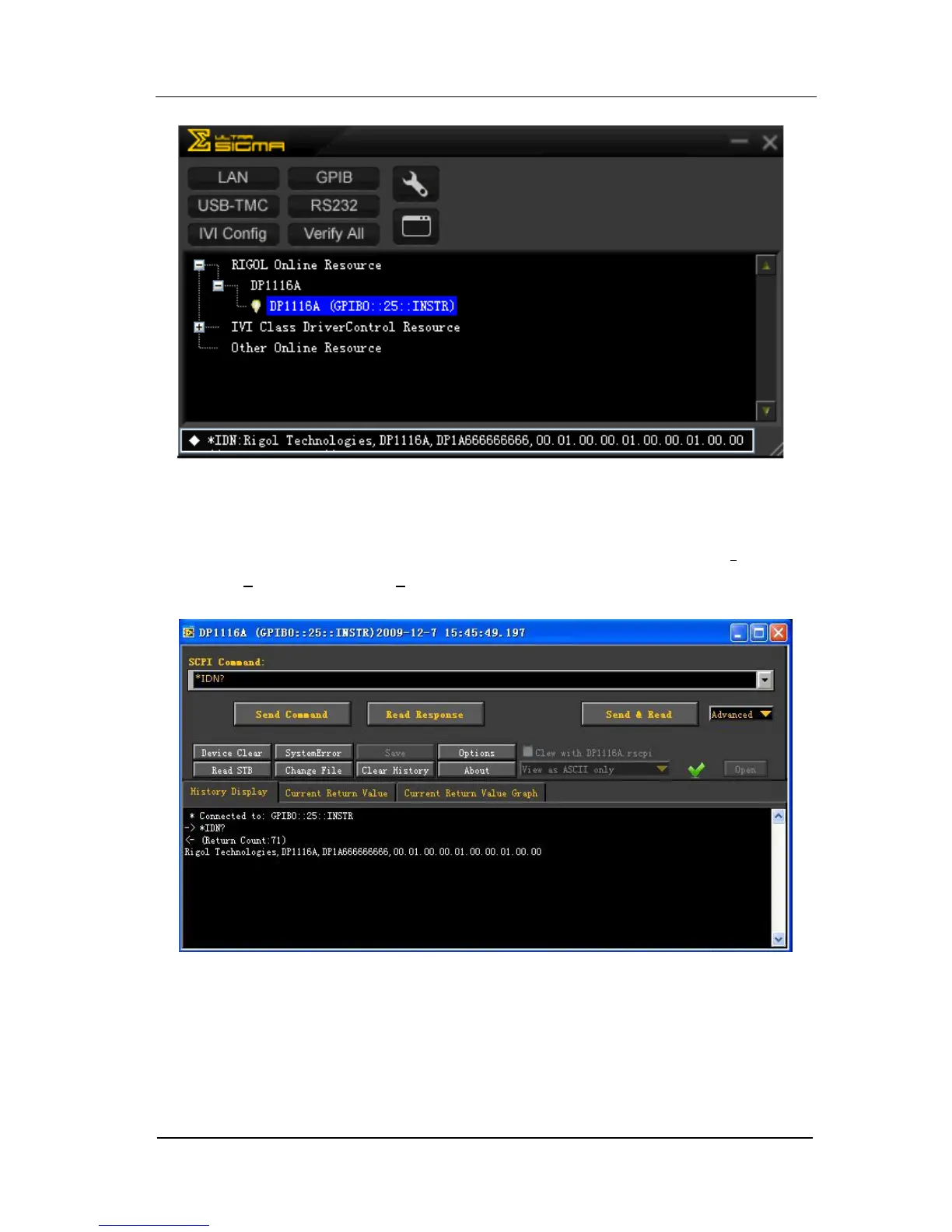

Figure 3-15 Available GPIB devices
(5) Communication test
Right click the “DP1116A (GPIB0::25::INSTR) and select “Instrument Common
RIGOL SCPI ControlPanel V1” to enter the remote control panel and send
commands or read the data, see figure below:
Figure 3-16 Read and write commands by GPIB
