Chapter 6 Operations and Measurements RIGOL
MSO5000 User Guide 6-45
The available units include "Source" and "Percent(%)".
➢ Source: measures the amplitude at Y Cursor (taking the channel
ground point as the reference). The measurement results include AY,
BY, and △Y (its unit is consistent with that of the current source).
➢ Percent(%): measures ratio at Y Cursor. The measurement results
include AY, BY, and △Y, and they are all expressed in percentage.
This oscilloscope allows you to set the reference position for the ratio
according to your needs. After adjusting Y Cursor to a desired position,
press Set Reference to take the current cursor position as the
reference. The current positions of Cursor A and Cursor B are
respectively defined as "0%" and "100%". Meanwhile, two cursors (in
blue) that cannot be moved are displayed on the screen as the ratio
reference position (the ratio position at "0%" and "100%" are
respectively marked by a solid line and a dotted line). Before you set
manually, the oscilloscope adopts the default ratio reference position.
6. Set LA Type
When "LA" is selected under Source, you need to set the LA display type. Press
More and then press La Type continuously to select "HEX" or "BIN".

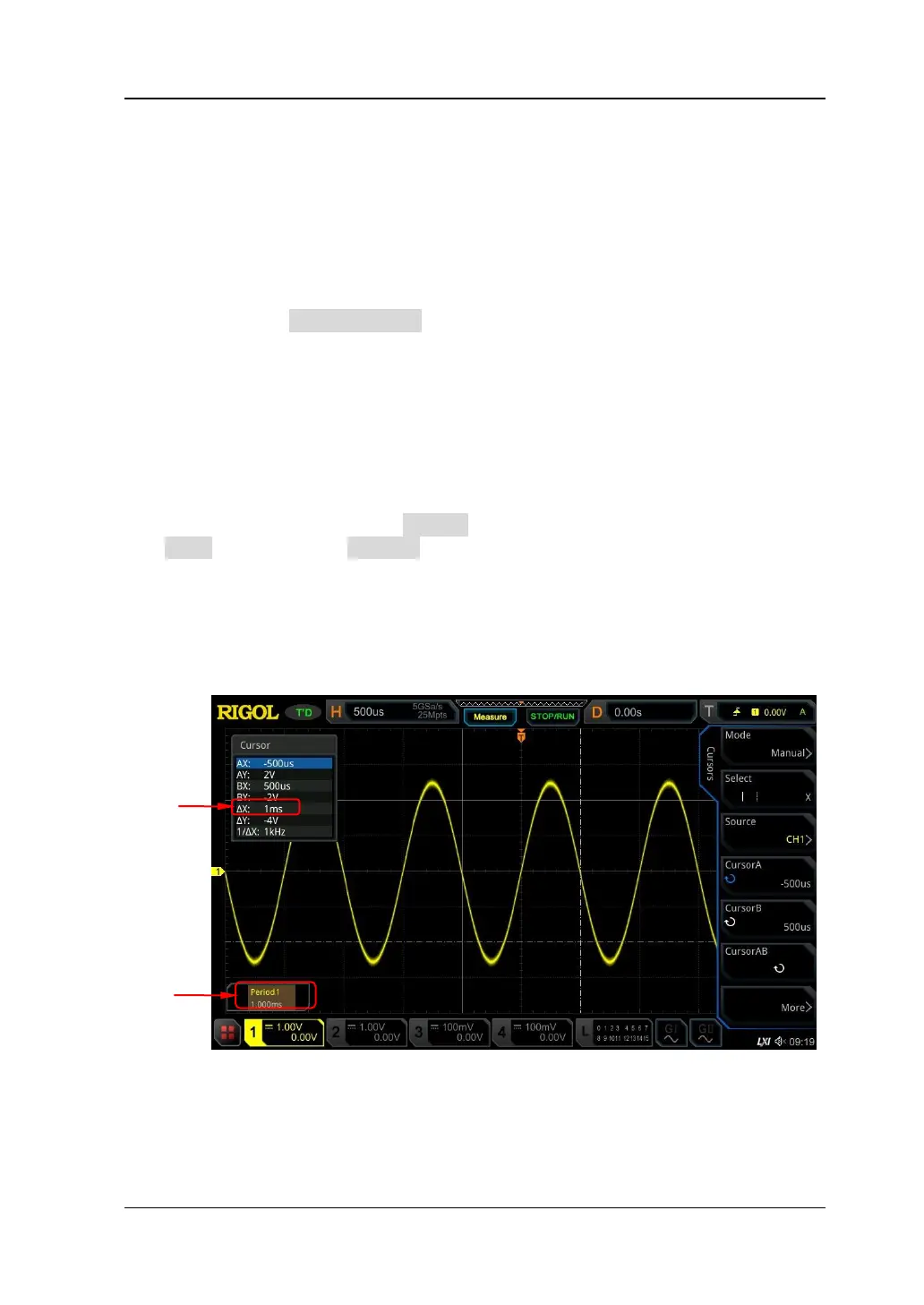

7. Measurement Example
Measure the period of a sine wave by using the manual cursor measurement
and auto measurement respectively. The measurement results are both 1 ms, as
shown in Figure 6-3.
Figure 6-3 Manual Cursor Measurement Example
Auto
Measurement
Cursor
Measurement

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
