2F-85 & 2F-140 - Instruction Manual
Grooved fingertip
The figure below represents the available grooved fingertip AGC-TIP-205-085 (2-Finger 85) and AGC-TIP-421-140 (2-Finger 140);
please refer to the Spare Parts, Kitsand Accessoriessection. Thisfingertip inner surface hasvertical grooves, making ideal for
picking cylindrical parts.

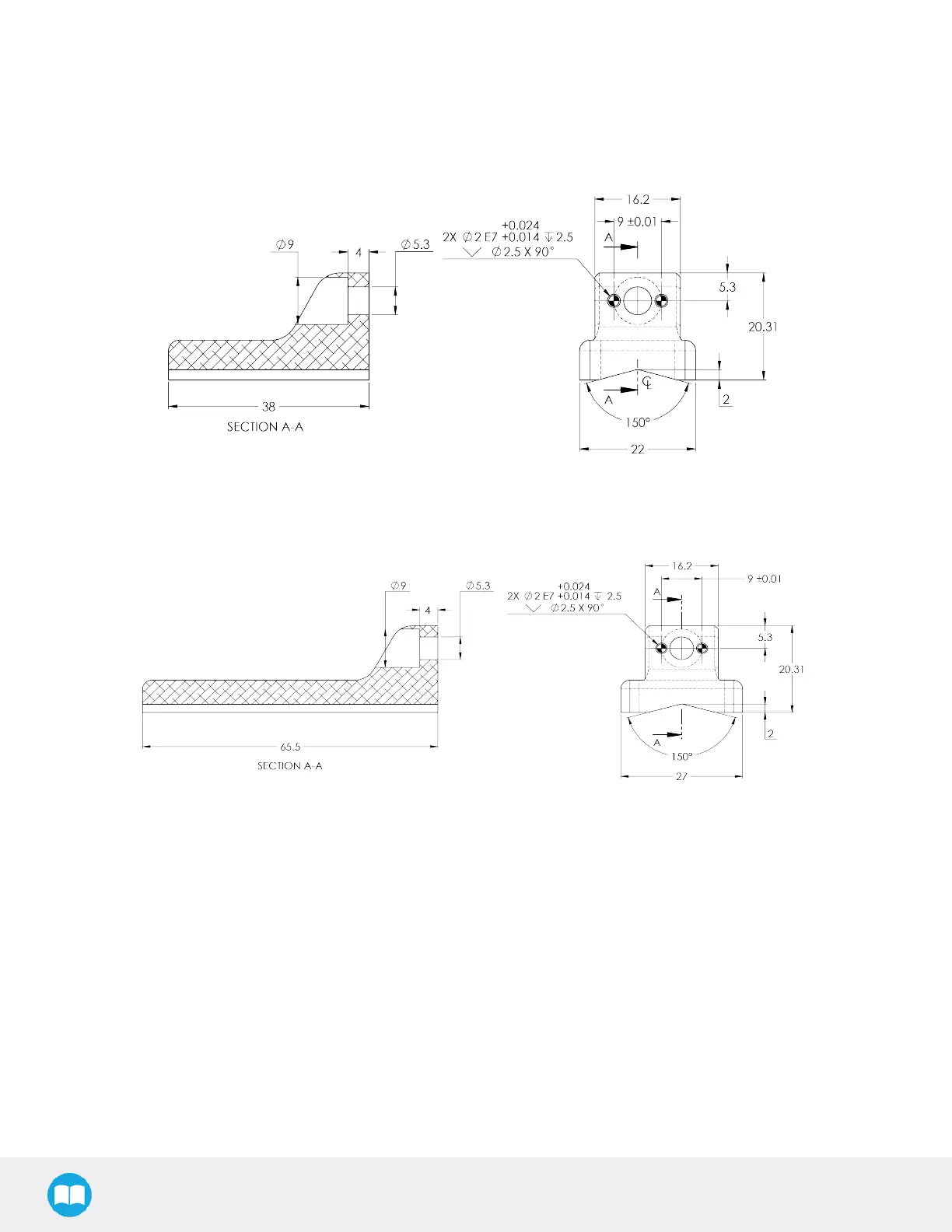

Fig. 5-9: Grooved fingertip AGC-TIP-205-085
Fig. 5-10: Grooved fingertip AGC-TIP-421-140
123
