2F-85 & 2F-140 - Instruction Manual
5.2.1.Payload and force

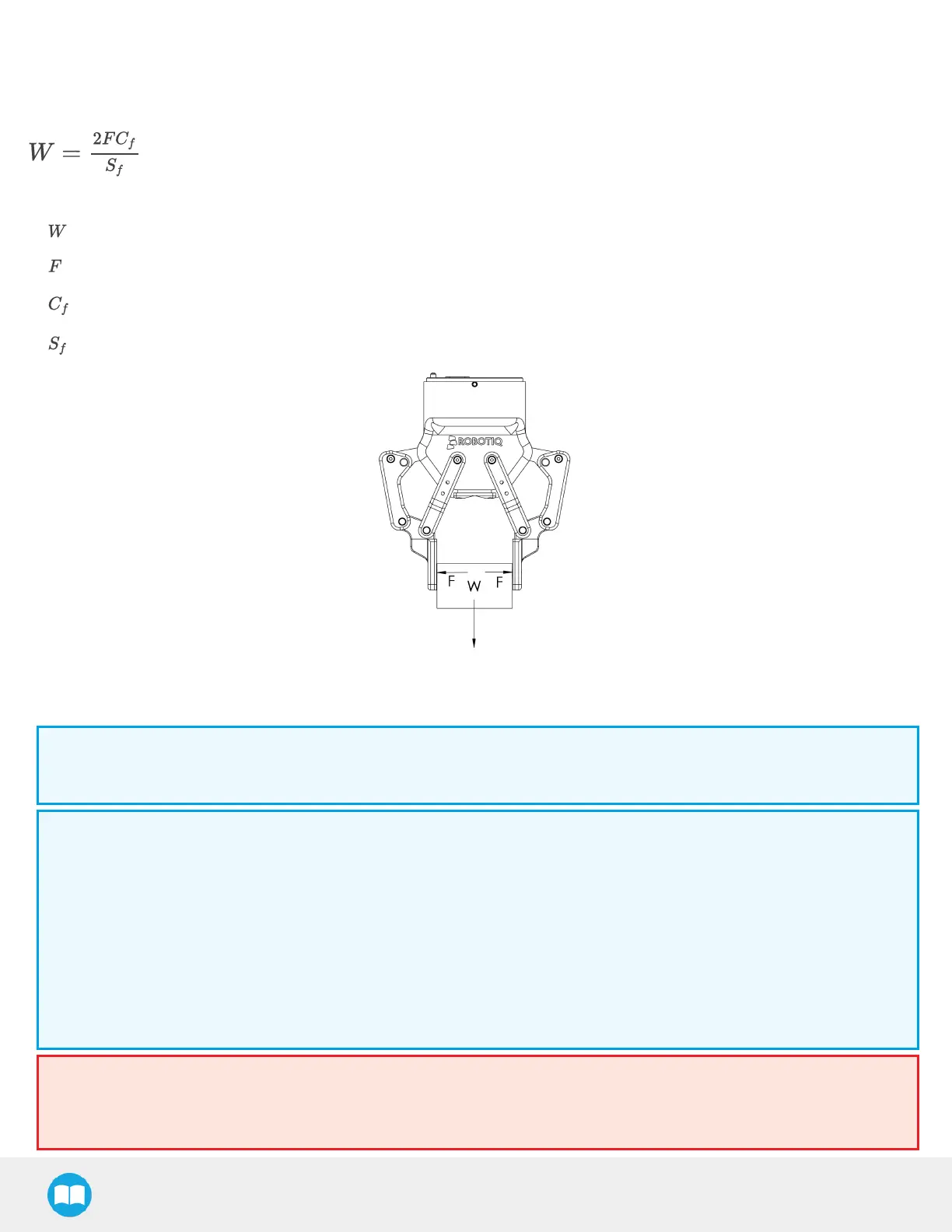

Friction Grip payload equation:
Where:
l
is payload weight
l
is the force applied by the gripper to the load
l
is the friction coefficient between fingertip and part load
l
is a safety factor to be determined by the robot integrator
Fig. 5-11: Grasping force on 2-Finger 85 fingertips.
Info
l
The Gripper is self-locking.
Info
For example, if the NBRovermolded fingertips AGC-TIP-MLD-KIT-85 are used to lift a lubricated steel part (machine
tending with cutting oils), the friction coefficient would be 0.3 (tested static coefficient of friction).
The maximum weight with a safety factor of 2.4 using the maximum grasping force of 130 N would be :
W = (2 x 130 N x 0.3) / 2.4 = 32.5 N
This calculation meansthat a 3.3 kg part will be held by the gripper when not moving (standing still). When accelerating,
the payload will decrease.
The biggest factor in such calculationswill always be the friction coefficient, we recommend testing the coefficient.
Warning
In payload calculations, take robot acceleration into account
Robot emergencystopswill lead to major deceleration velocities.
125
